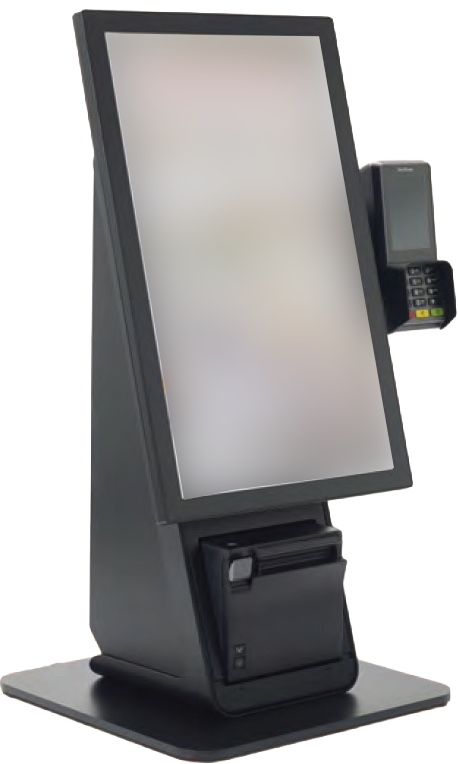

SF Model | 5200-TD22; 22-in Edge Ultra Portrait Kiosk with Countertop base, WiFi, Bluetooth, without printer 5200-TD22P; 22-in Edge Ultra Portrait Kiosk with Countertop base, WiFi, Bluetooth, and printer 5200-TD22N; 22-in Edge Ultra Portrait Kiosk with Countertop base, WiFi, Bluetooth, Nav Bar, without printer
|
Processing | Windows: Intel® Celeron J6412 Elkhart Lake |
OS Support | Windows 10 Enterprise |
Memory | DDR4 16GB |
Storage | M.2 NVMe SSD 512GB |
Minimum Requirements | 8GB RAM; 256GB SSD |
LCD & Touch | |
Expansion | M2 Slot x1 |
I/O Ports (Standard) | USB: 2x USB 2.0, 2x USB 3.0, 2x USB-C Serial: 2x DB9 with the power option LAN: 1x Gigabit Lan Video Port: Custom miniDP convertible to VGA or HDMI Cash Drawer: RJ12 Direct I/O access or OPOS support
|
I/O Ports (Optional) | 2nd LAN: 1x Gigabit LAN |
Optional Peripherals | MSR: IDTECH or Magtek Readers Webcam: 2.0MP Wifi & Bluetooth: Wireless A/B/G/N/AC, Bluetooth 5 2D Barcode Scanner: Honeywell Optional Integrated Printer: Epson TM-M30—interfaces include: USB, Serial, Ethernet, WiFi—Podium Kiosk: Slim Printer Base
|
Environment | Operating and Storage Temperature: 0ºC ~ 35ºC (32ºF ~ +95ºF), -20ºC ~ 60ºC (-4ºF ~ 140ºF) Operating and Storage Humidity: 20% ~ 85% RH non-condensing
|
Dimensions | Screen and Podium Kiosk: 12 7/8-in (W) x 26 3/4-in (H) x 8 1/4-in (D) Podium Only: 16-in (W) x 30 1/2-in (H) x 14-in (D)—dimensions include bottom pate Screen and Base: 21.5-in (W) x 13-in (H) x 8-in (D) Weight of Screen and Base: 18lbs
|
