Aava 10 Tablet

SF Model

2300-10-SAANA

Display

10.1-in; 1200 x 1920px; 660 cd/m2

Payment NFC

Front facing NFC antenna behind Display; Optimized for payment processing; Supporting EMV and other payment cards like transit cards—Felica, MiFare; Software-controlled overlay for improved customer experience

Touch

Multi-touch—selectable user mode; Passive stylus support—4-mm tip; Glove support—cotton gloves; Waterdrop recognition—rain and outdoor moisture

Platform

Qualcomm QCS6490; 64-bit Octa Core Processor 2.7GHz

Operating systems

Android 13; Regular security and maintenance updates guaranteeing safety of payment processing

Memory

8GB LPDDR5, 128GB UFS; Optional: 16GB LPDDR5, 256GB UFS; microSDXC card slot—accessible by end user

Communication

WLAN IEEE 802.11ax+r/k/v; WiFi6E, WiDi, WWAN, BT5.3, BLE; GPS / GNSS / Galileo; Front-Facing NFC—secure element-front and center

Cameras/Scanning

Front 5MP; Main 13MP; eBarcodeScan application enabling professional scanning via main camera

Sensors

E-compass, accelerometer, gyro, ambient light sensor, proximity sensor, WiFi SAR, programmable Shortcut button with optional Fingerprint Sensor

Interfaces

USB-C: USB 3.2, PD (9V/3A) and DP 1.4—for fast charging and debugging; Docking connector: USB 3.2, microSD card slot in battery compartment; Smart Back Connector for easy USB accessory integration

Mechanics

Durable and rugged; Robust against vibrations

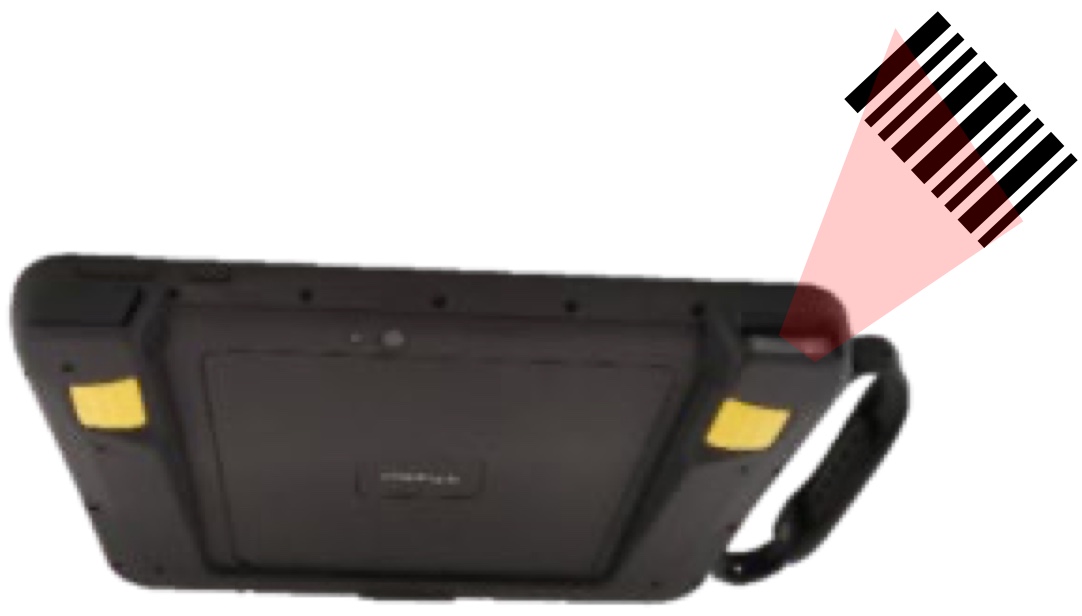

IP65—dust-and waterproof; Drop resistance from 1-m on concrete and 1.22-m on plywood; With optional scanner frame: up to 1.5-m on plywood; With optional rugged frame: up to 1.8-m on concrete; Exchangeable battery; Kensington Lock feature; Compatible with existing Accessory Portfolio

Battery

Battery: 38 Wh—3.85V, 9900mAh

Dimensions

269.04 x 180.66 x 12.70 mm

Weight

approx. 817g

Operating conditions

Temp: -10°C … +50°C; Humidity: 10% … 90%; Charging: 0…50°C; ESD rating: 15kV Air Discharge

Storage conditions

Temp: -20°C ... +60°C

Warranty

1-year standard warranty; Optional: 3-year warranty contract
