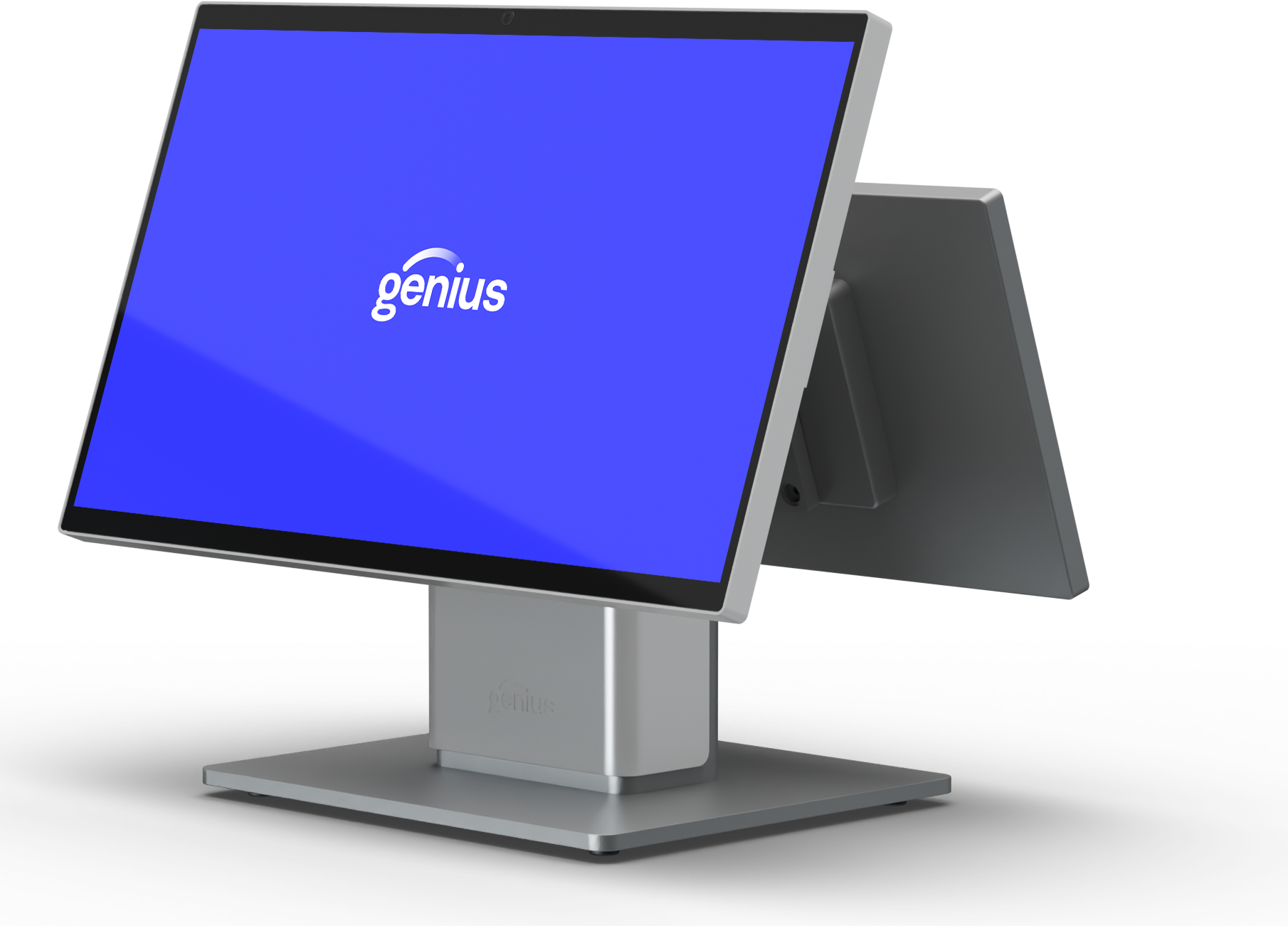

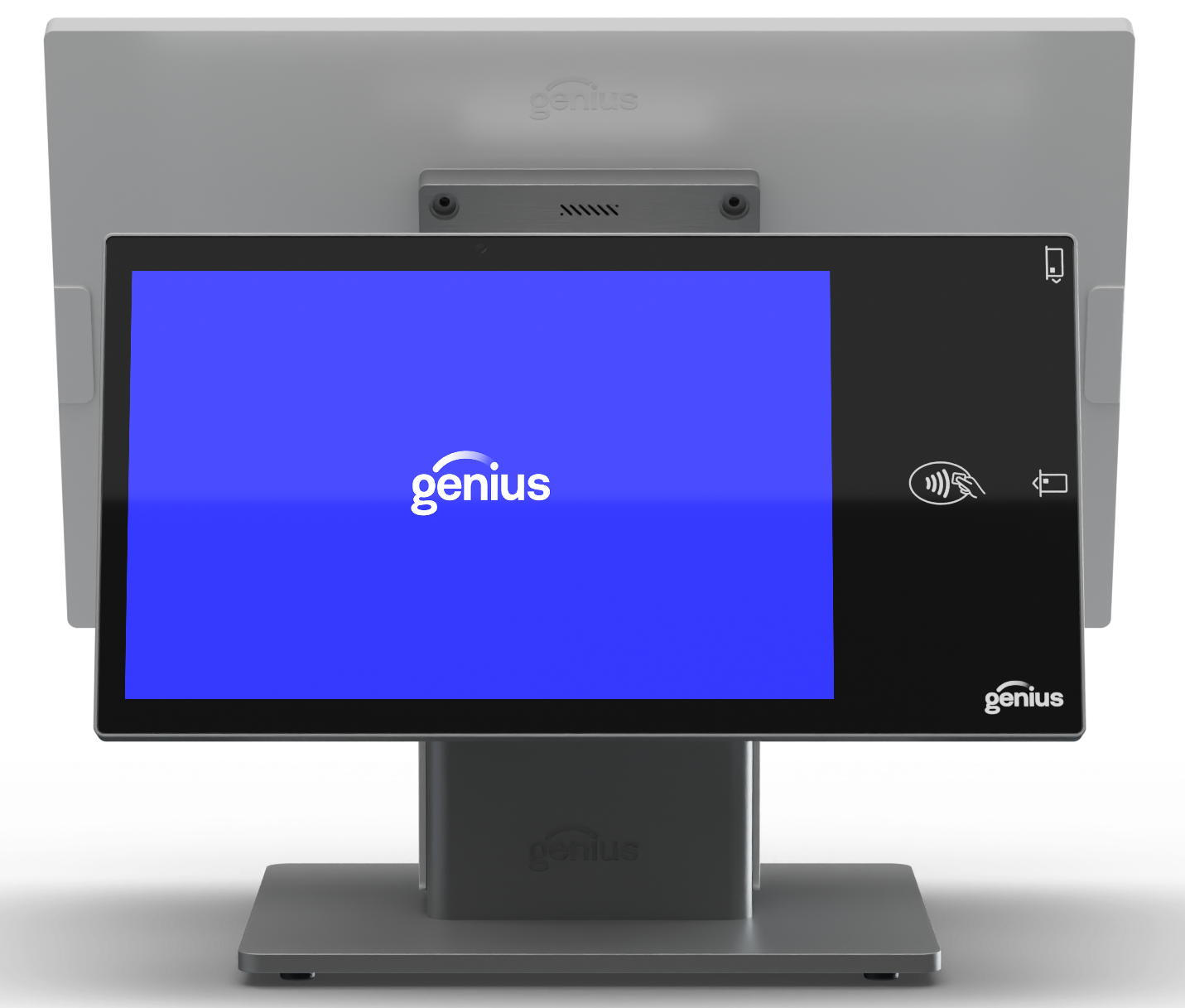

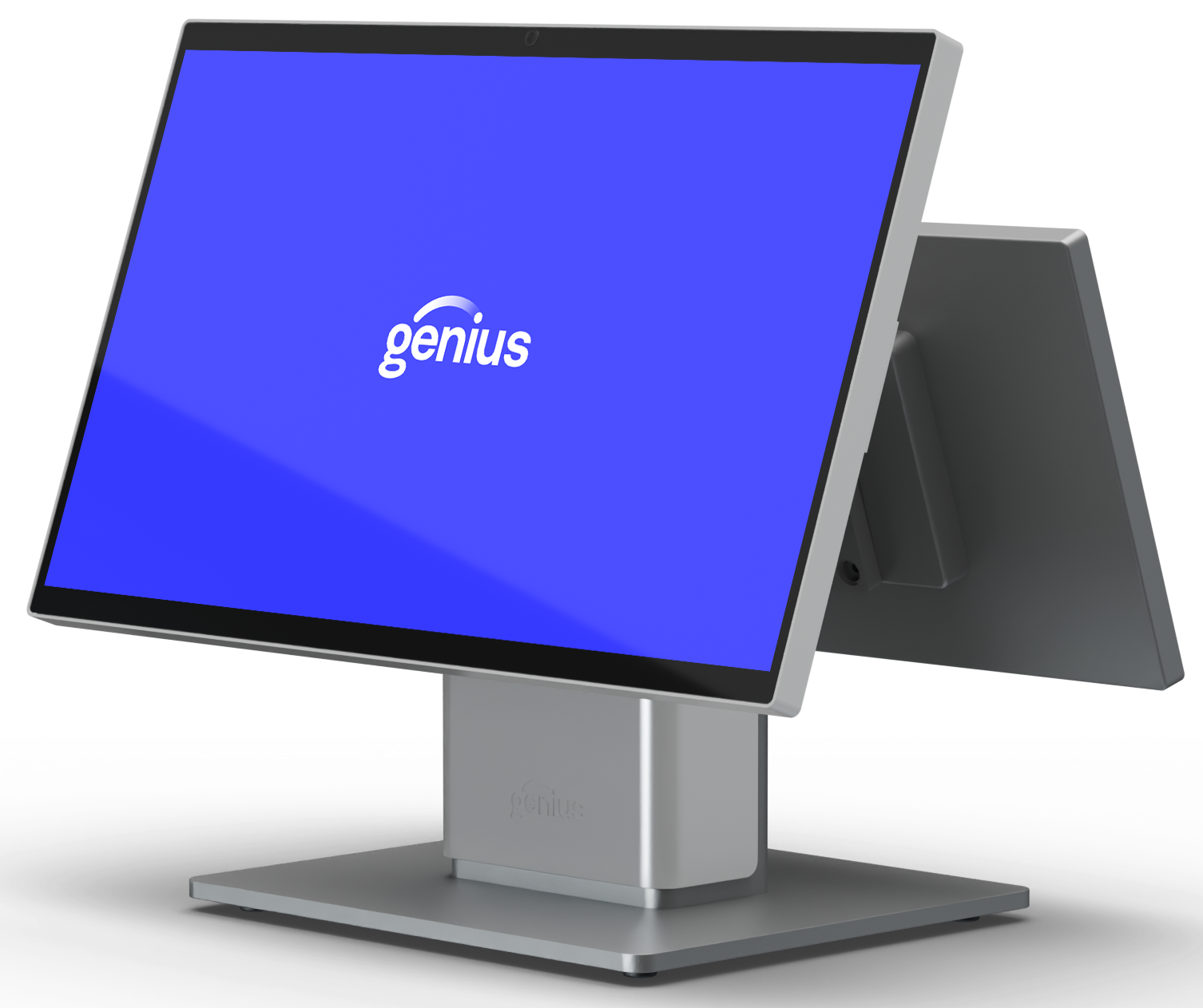

GC26

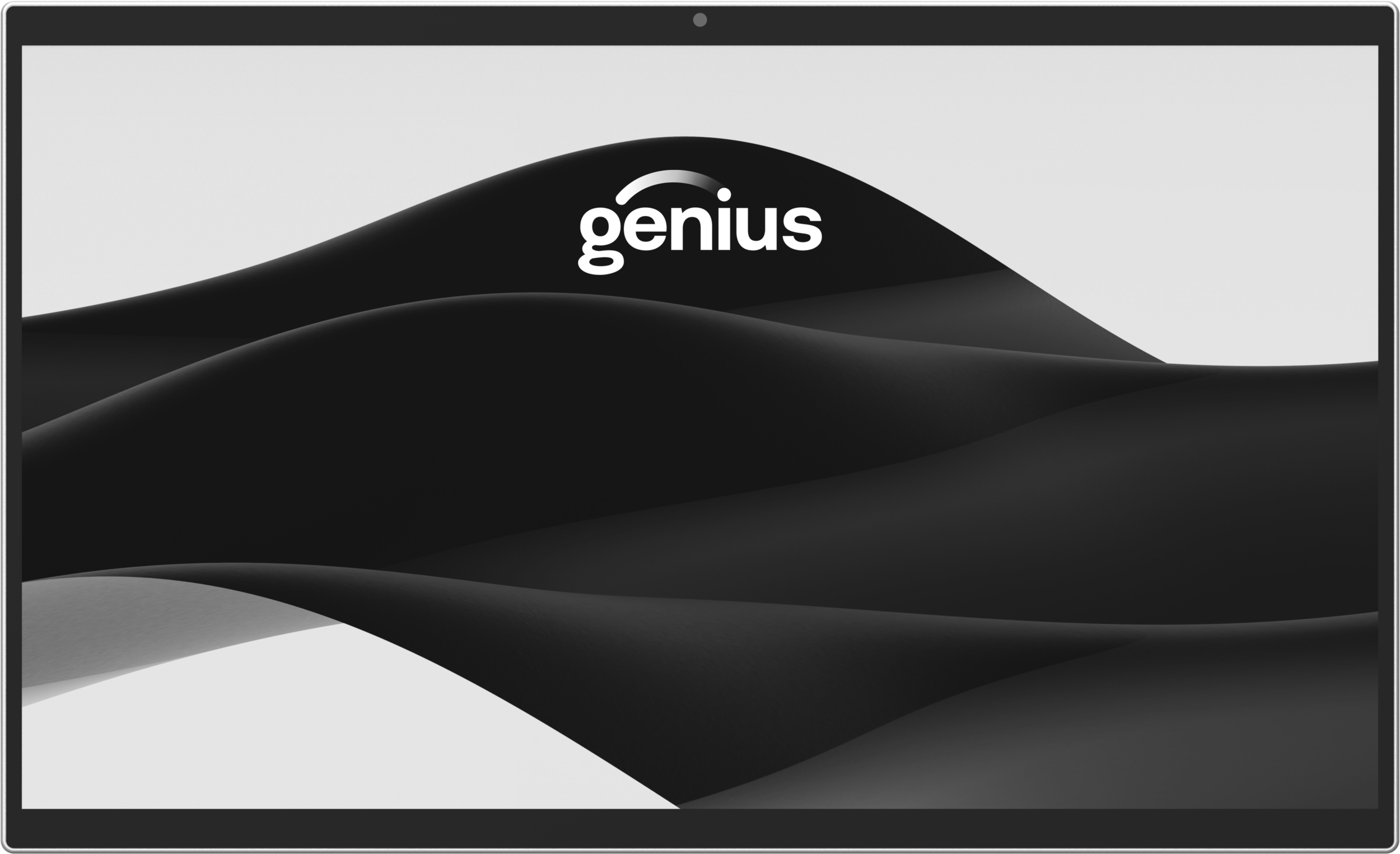

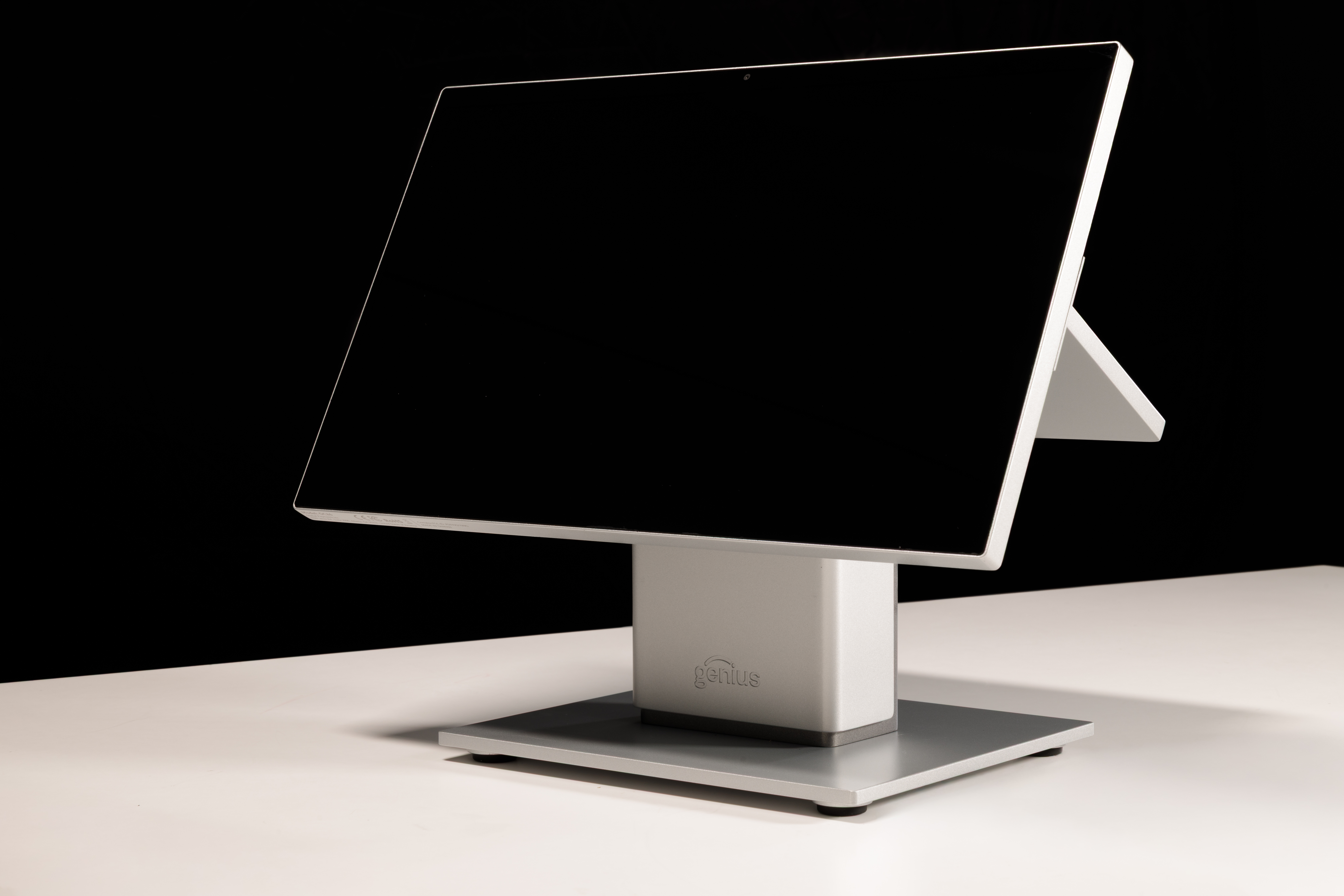

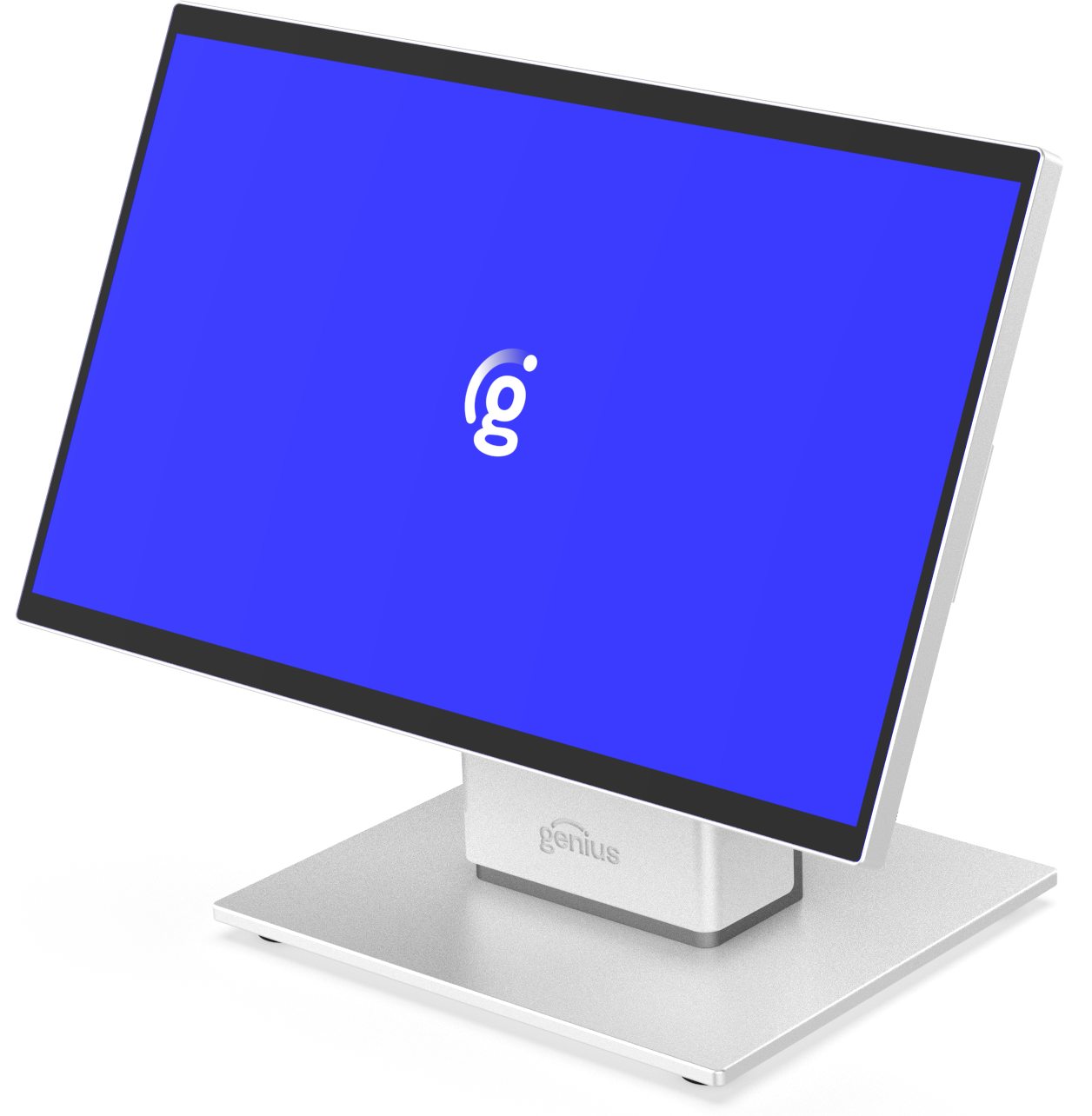

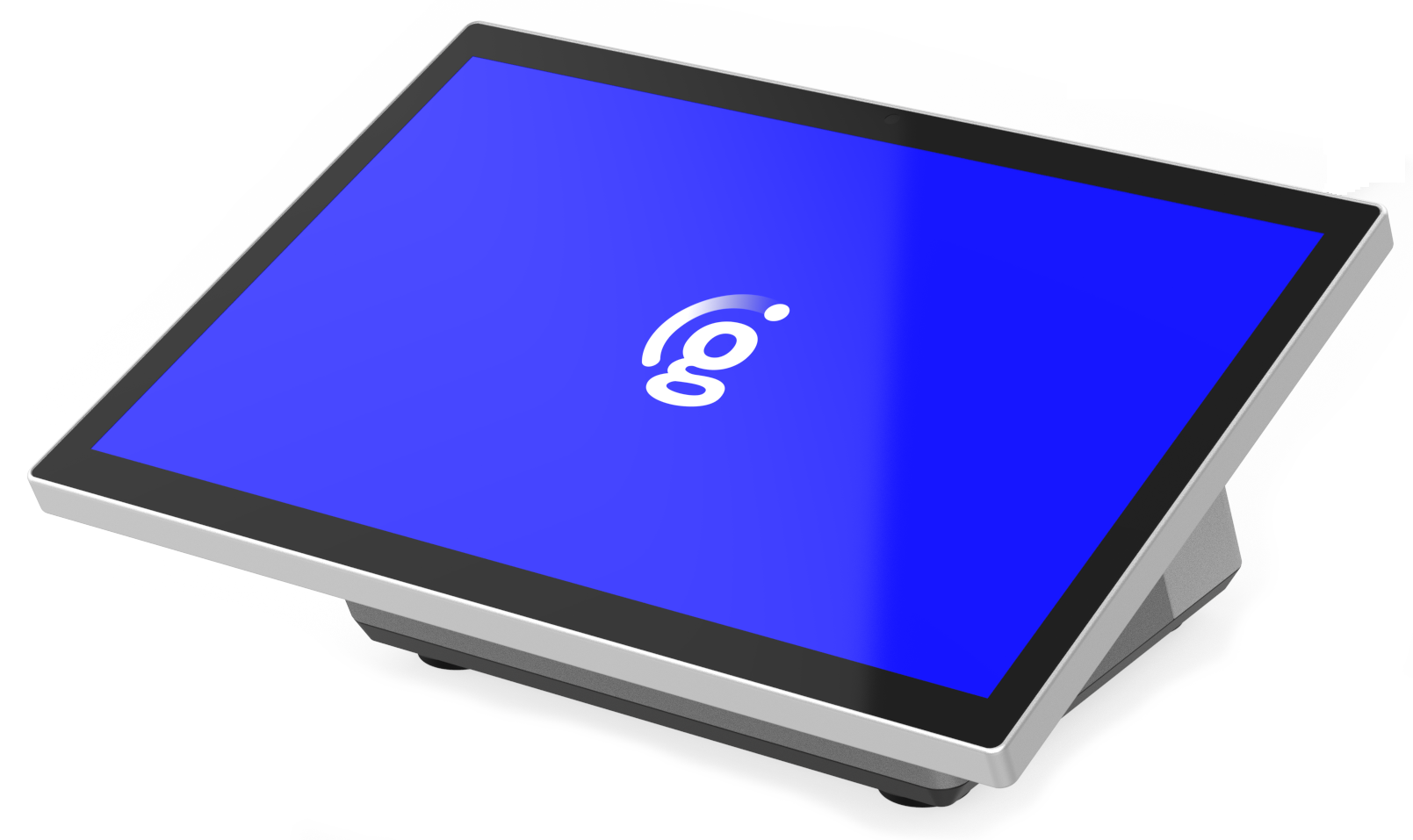

GC26 Merchant-Facing Display

GC26 \| MFD
SF Model	2600-MFD
Serial	72PC79LM0010
Display	15-in countertop display
System	G99 with Intel Alder Lake N97 or optional Intel Alder Lake i3-N305, integrated CPU
Memory	8GB DDR4 onboard
Storage	256GB M.2 SSD
Network	M.2 (E-Key), 1 x M.2 2230 for 802.11 a/b/g/n/ac with optional BT5.2
Display	15.6-in LED, True-Flat PCAP Multi-touch—direct bonding
Resolution	1920 x 1080 (Full HD)
Brightness	500-nits
Connectivity (I/O)	LAN, 1 x RJ-45 (10/100/1000 BaseT) with PoE—max: 36W USB Type-C, 1 x Type-C (power), USB3.0, 20V/5A input and 5V/3A output, On The Go support; 1 x Type-C (display), support ALT with PD (5V,12V)
Peripheral port	Pogo PIN, 1x right side; 1x left side

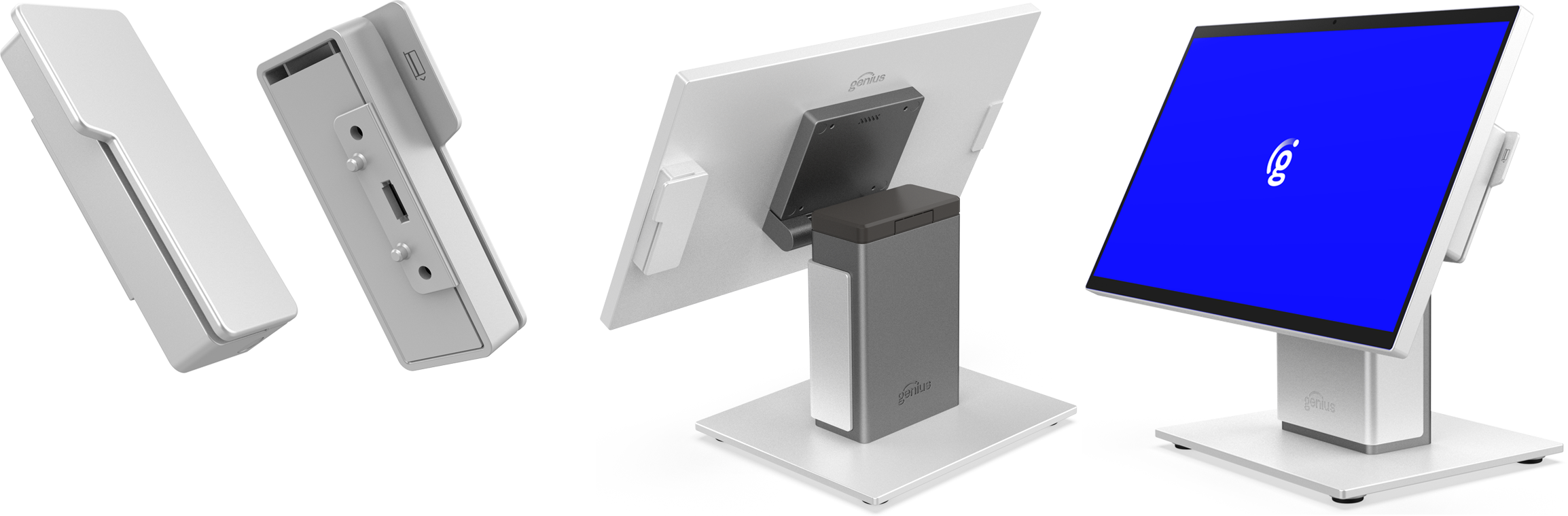

Magnetic Stripe Reader	Yes

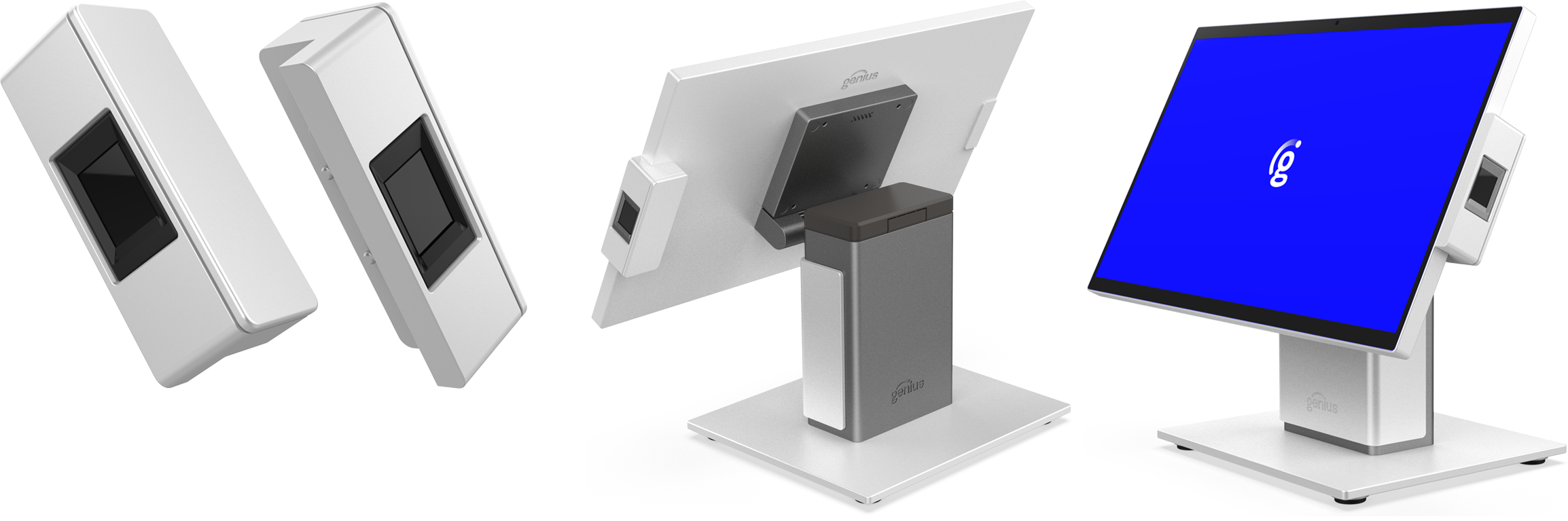

Fingerprint Biometrics	Yes

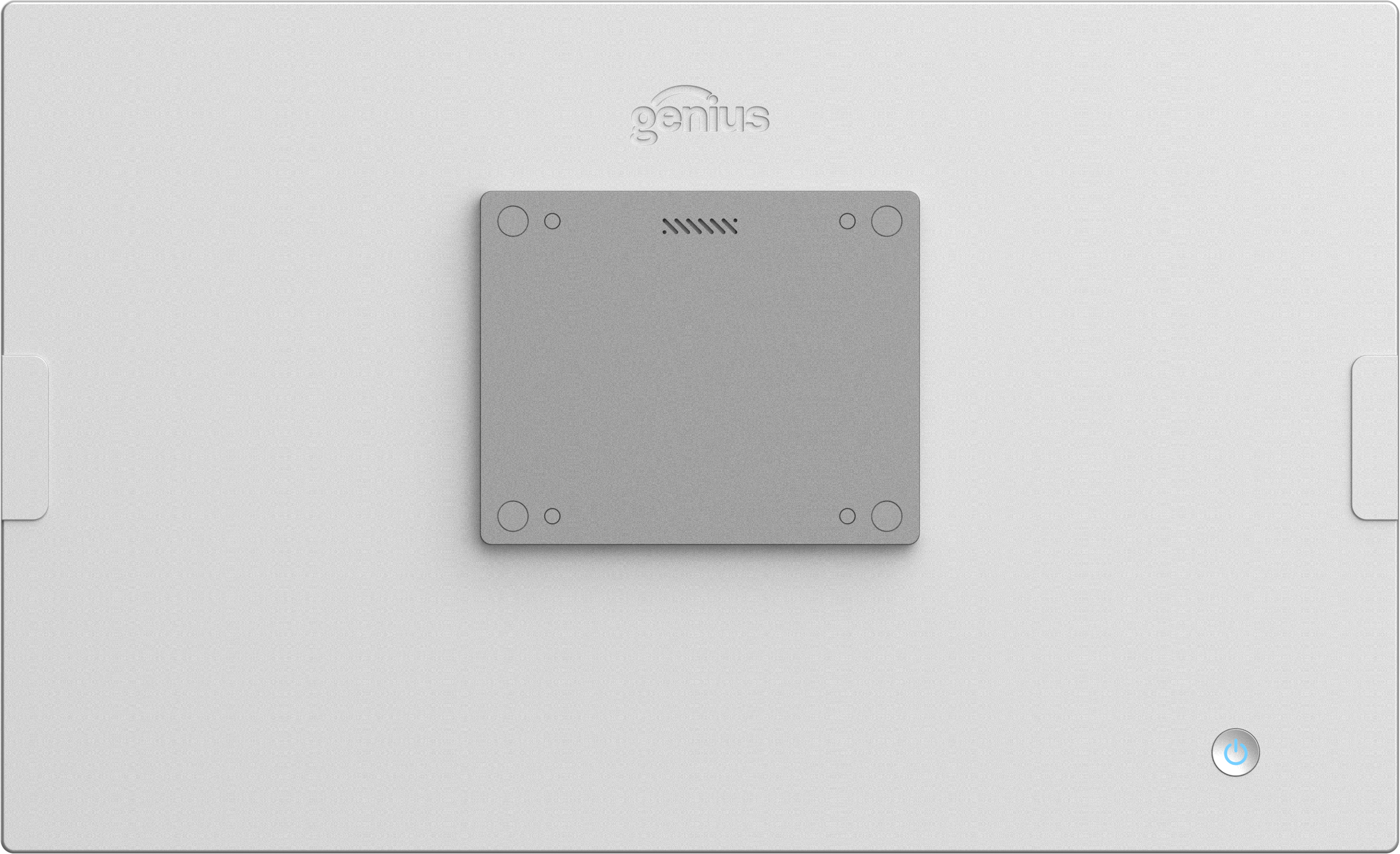

Power button	1 x Installed on the back cover
Camera	1 x 5M
Audio	Internal speaker, 1 x 1W
VESA Mount	75 x 75
Environment	Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F) Storage Temperature: -20°C ~ 60°C (-4°F ~ 140°F) Humidity: 20% ~ 80% RH non-condensing
Certificates	EMC and Safety: FCC and CE Mark Class A, LVD Dust and Waterproof IP Rating: IP54

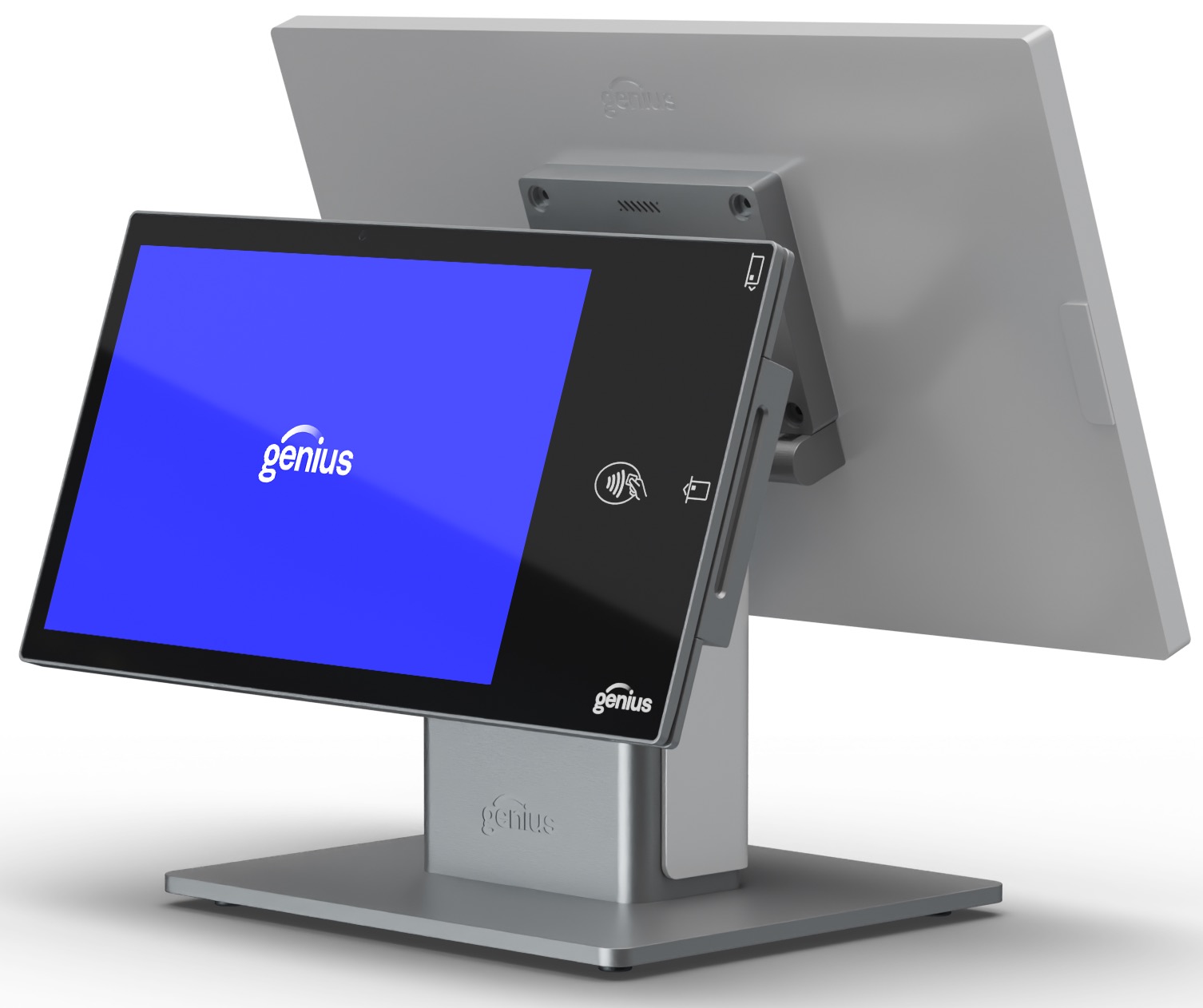

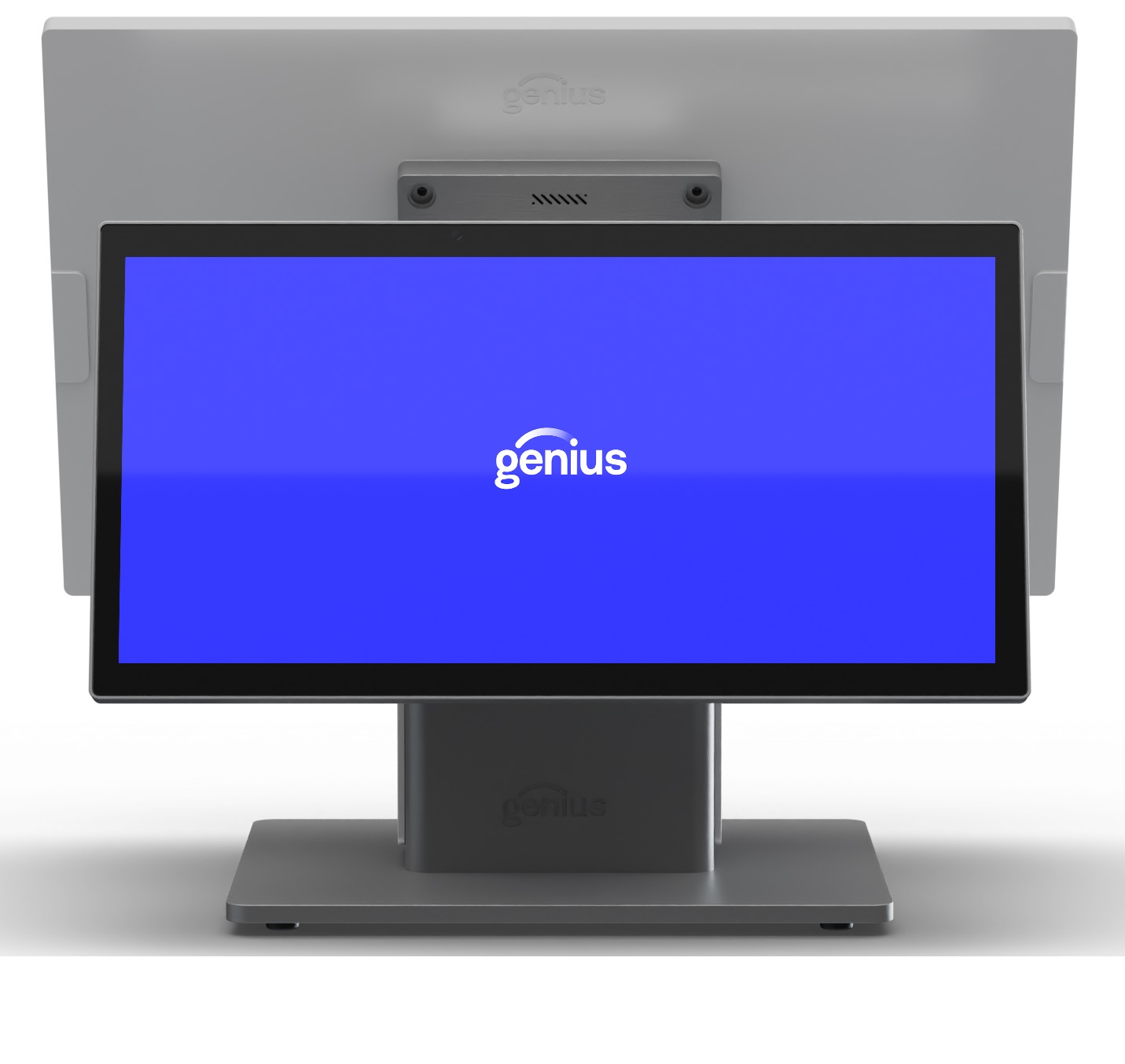

GC26 \| Customer-Facing Display
SF Model	2600-CFD
Serial	(pending)
Display	10.1-in LCD True-Flat PCAP Multi-touch—direct bonding
Resolution	1900 x 1200
Brightness	500-nits
Bezel	Glass

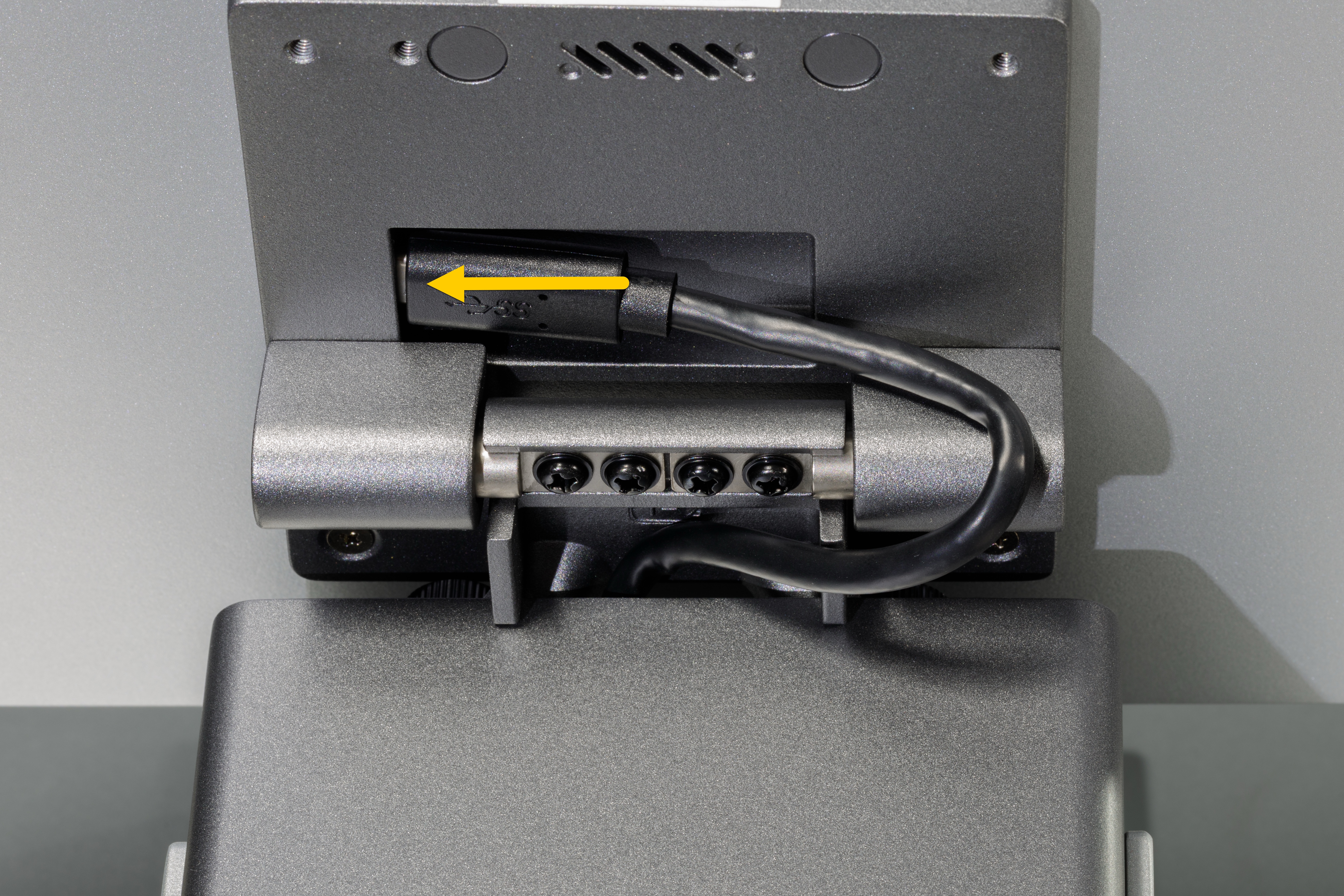

Connection	1x USB-C support ALT with PD (5V,12V)

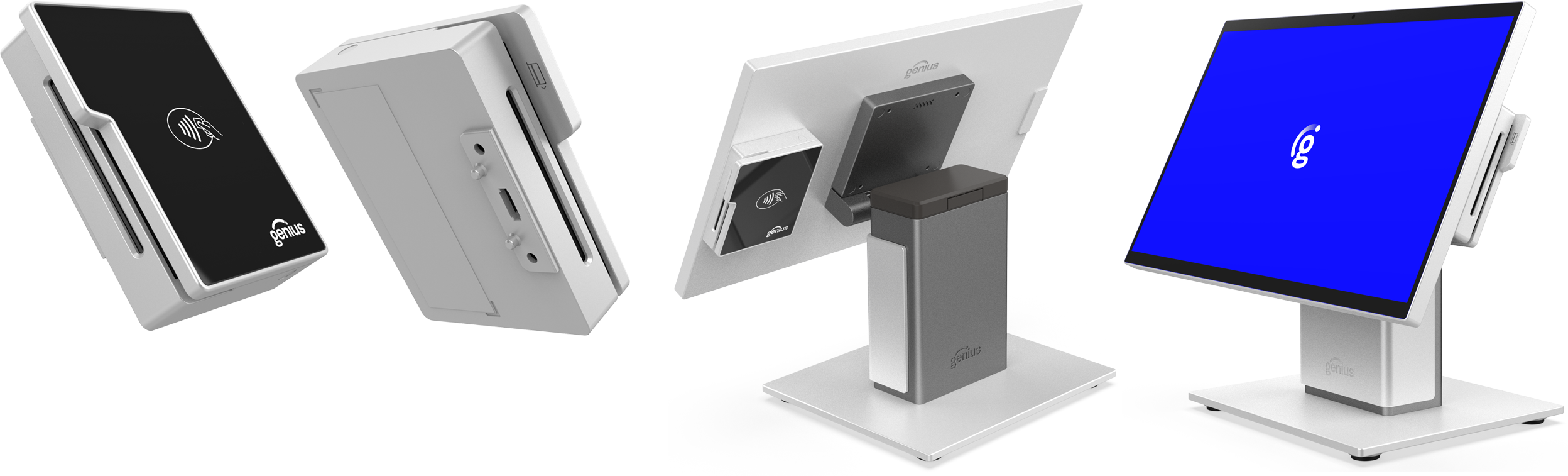

Peripheral module	optional embedded Moby5500 payment card reader, connecting through internal USB
Camera	5M fixed focus, built-in
Audio	1x 1W

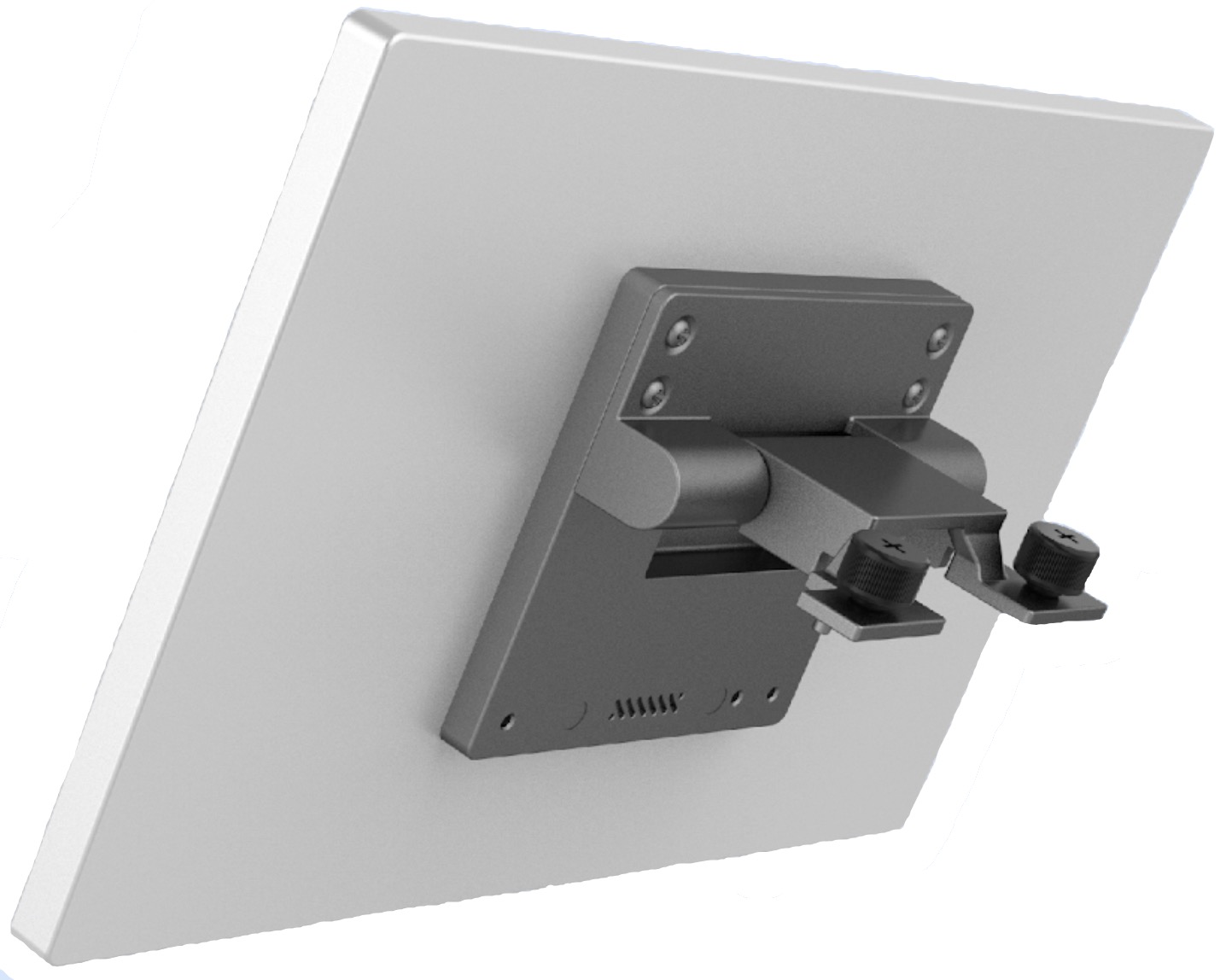

VESA Mount	75 x 75, on back
Environment	Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F) Storage Temperature: -20°C ~ 60°C (-4°F ~ 140°F) Humidity: 20% ~ 80% RH non-condensing
Certificates	EMC and Safety FCC and CE Mark Class A, LVD Dust and Waterproof IP Rating IP54

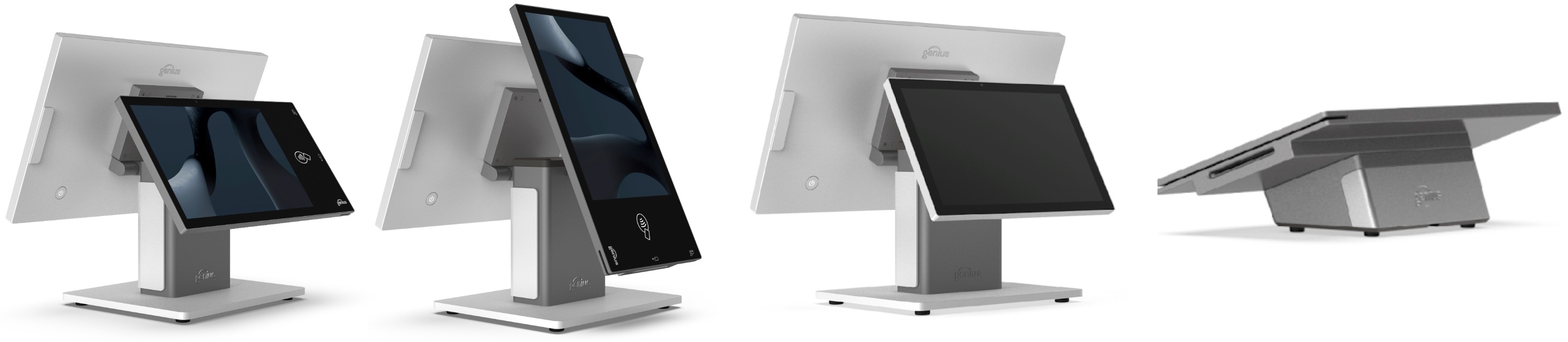

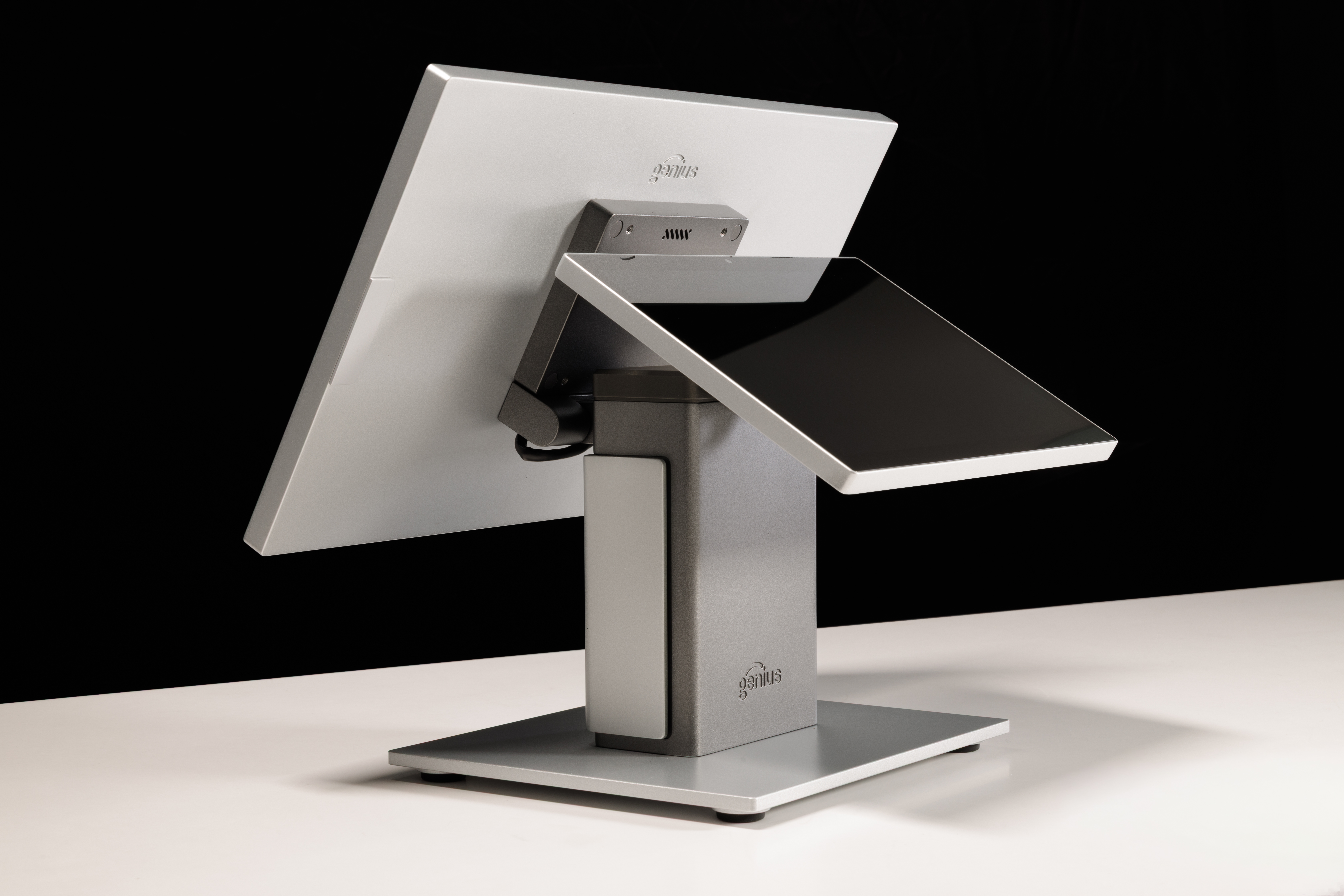

Mounting configurations	Landscape; Portrait; connect to MFD stand or place on counter

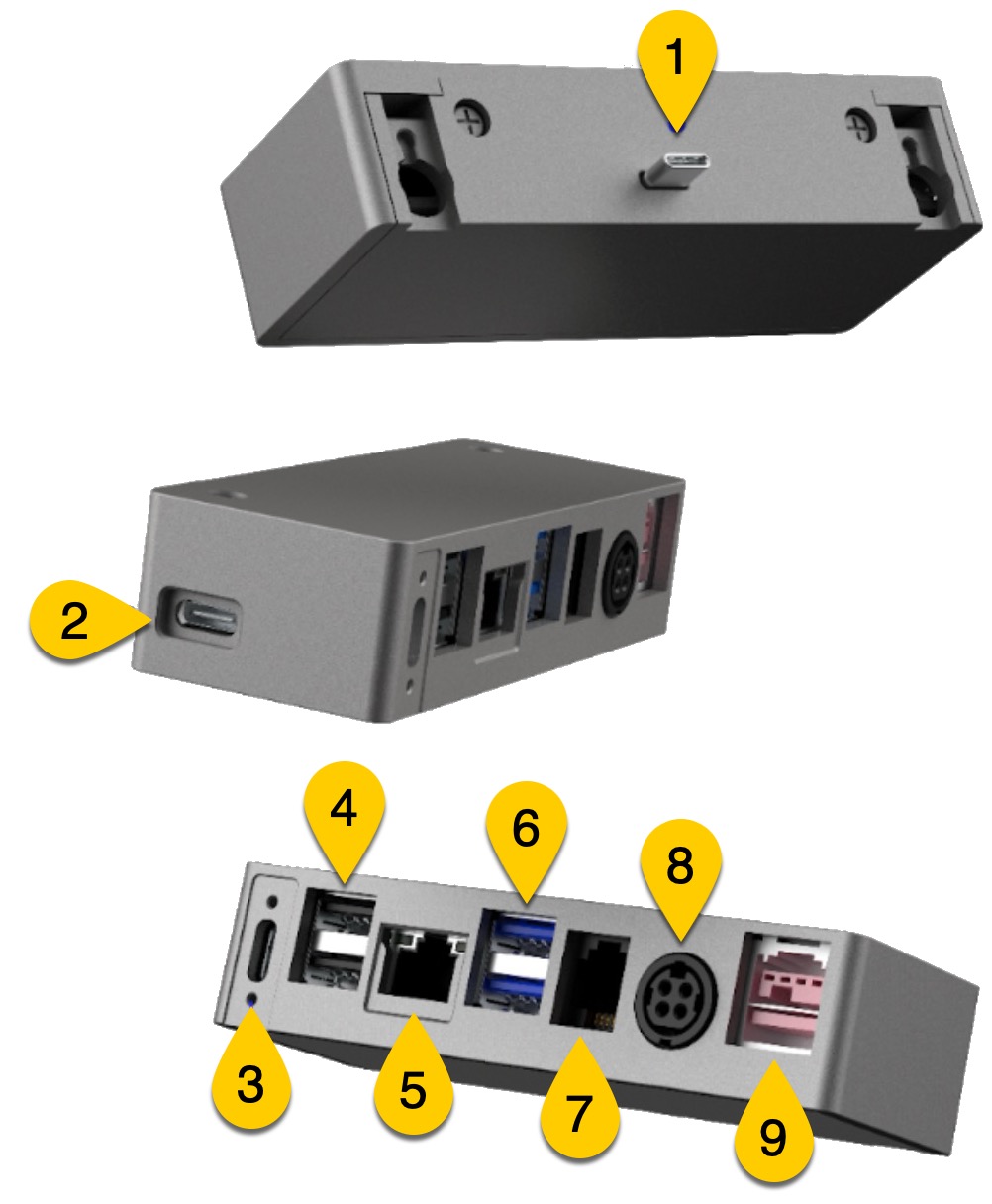

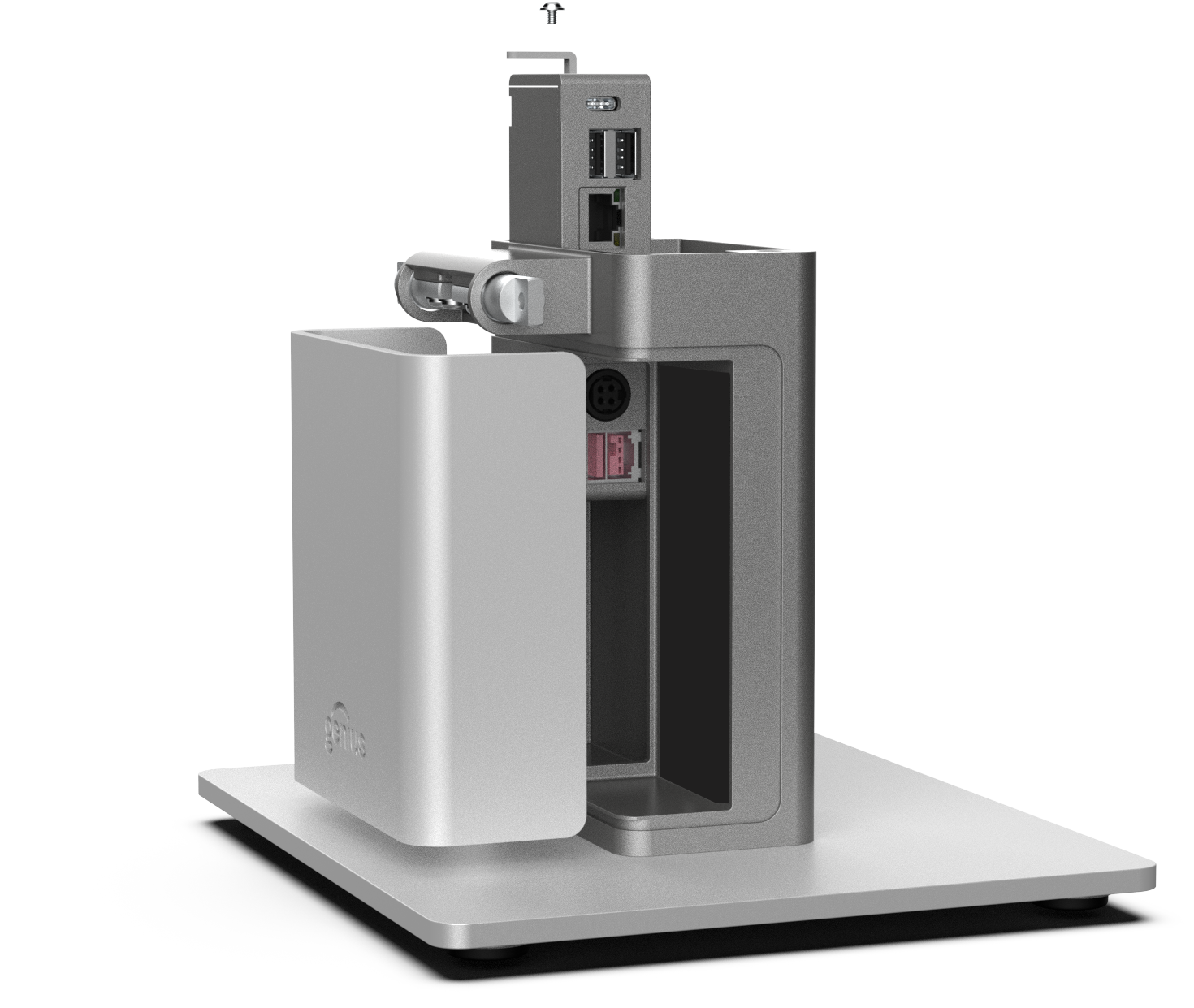

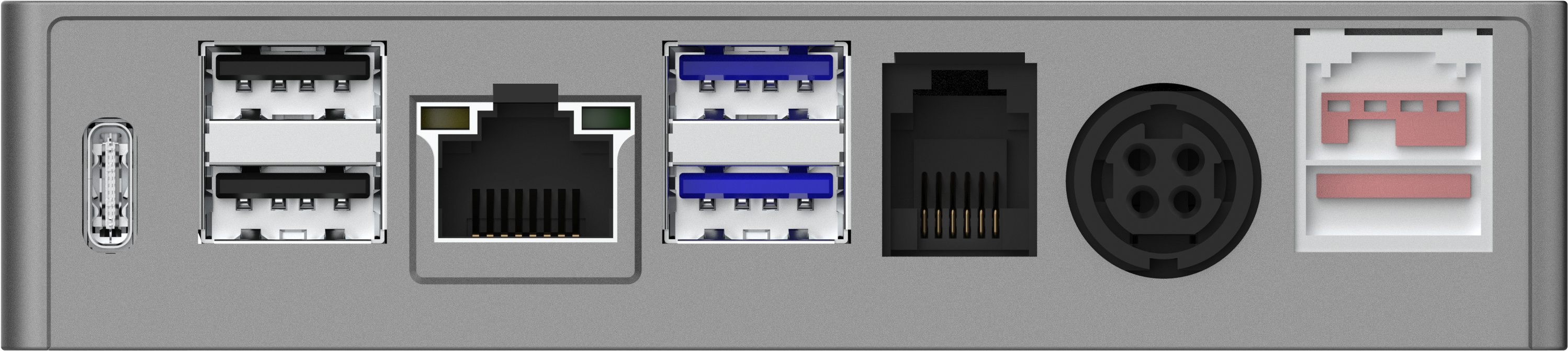

GC26 \| Hub
SF Model	2600-HUB1
Serial	7EPC79PP0001
Connection	USB-C, attached to the panel or stand
Ports	1x USB-C for CFD, 2x USB-a 2.0, 2x USB-a 3.0, LAN RJ45, RJ11 CD, DC Jack, PUSB 24V
