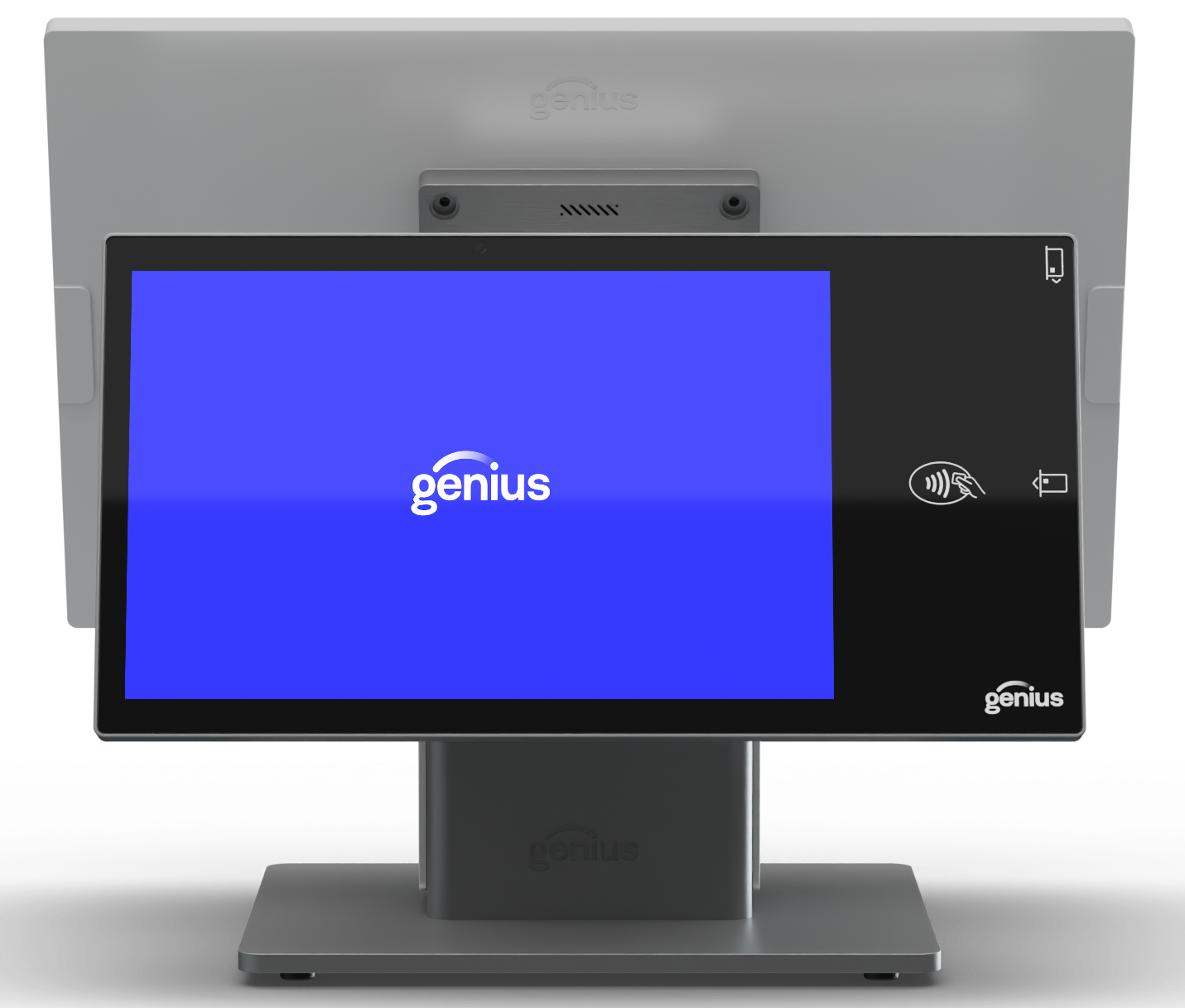

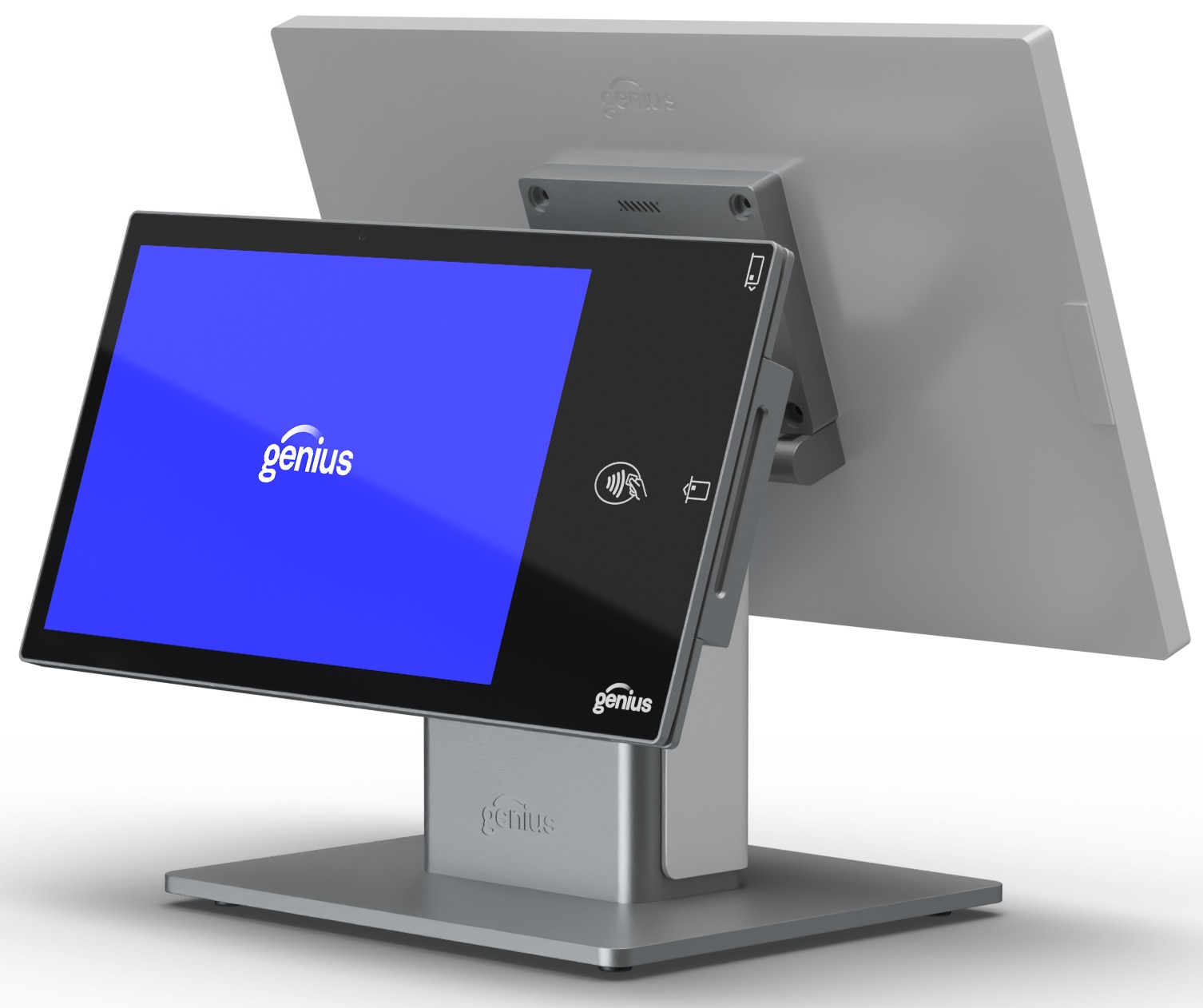

GC26

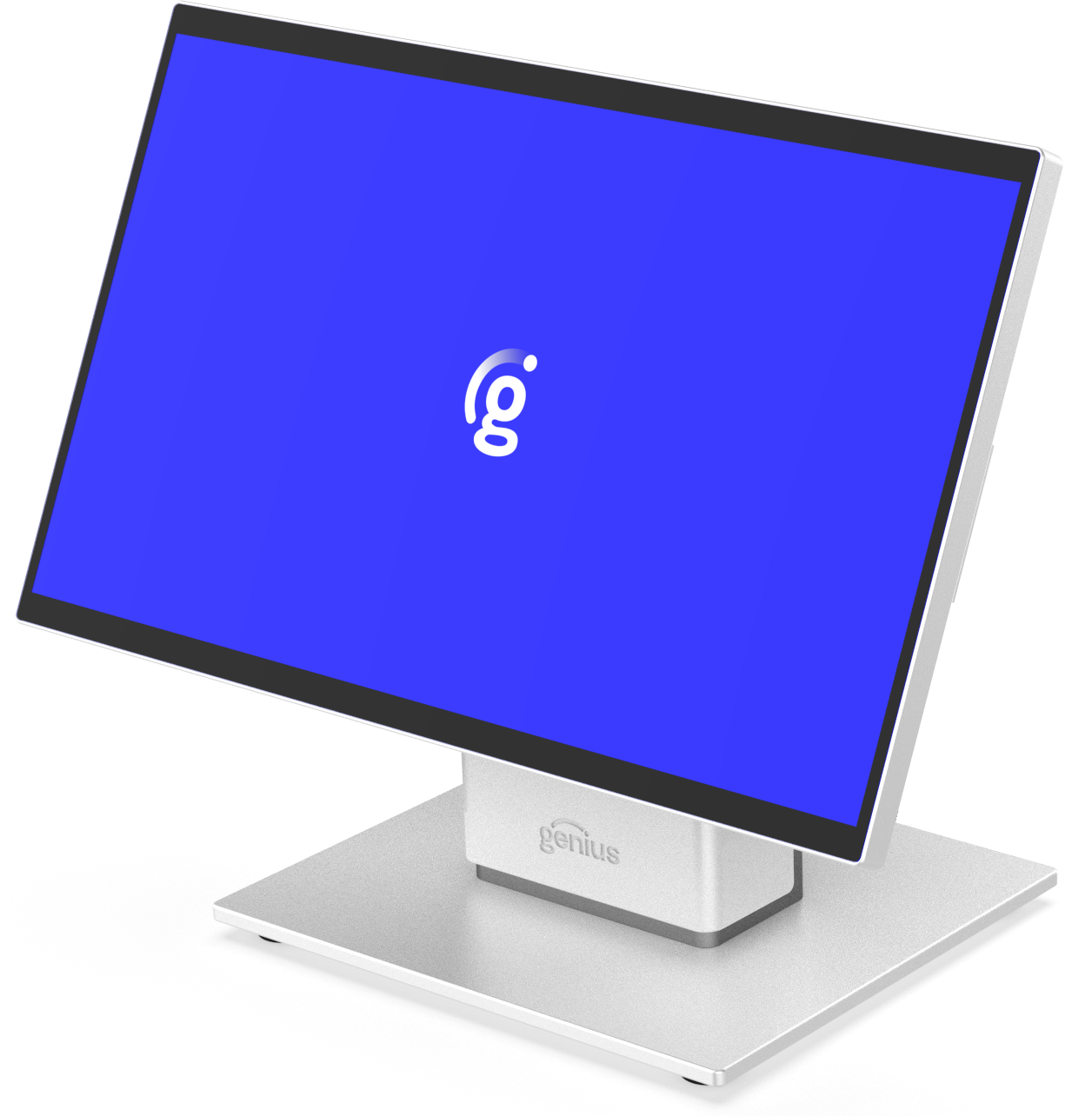

GC26 Countertop Bundle | ||
|---|---|---|
GC26 Countertop Bundle | 2600-B-GC26C | |
2600-MFD | ||
2600-CS | ||
2600-HUB1 | ||
2600-USBC | ||
2600-PS | ||
2600-PCORD | ||
*Customer-Facing Display ordered separately.

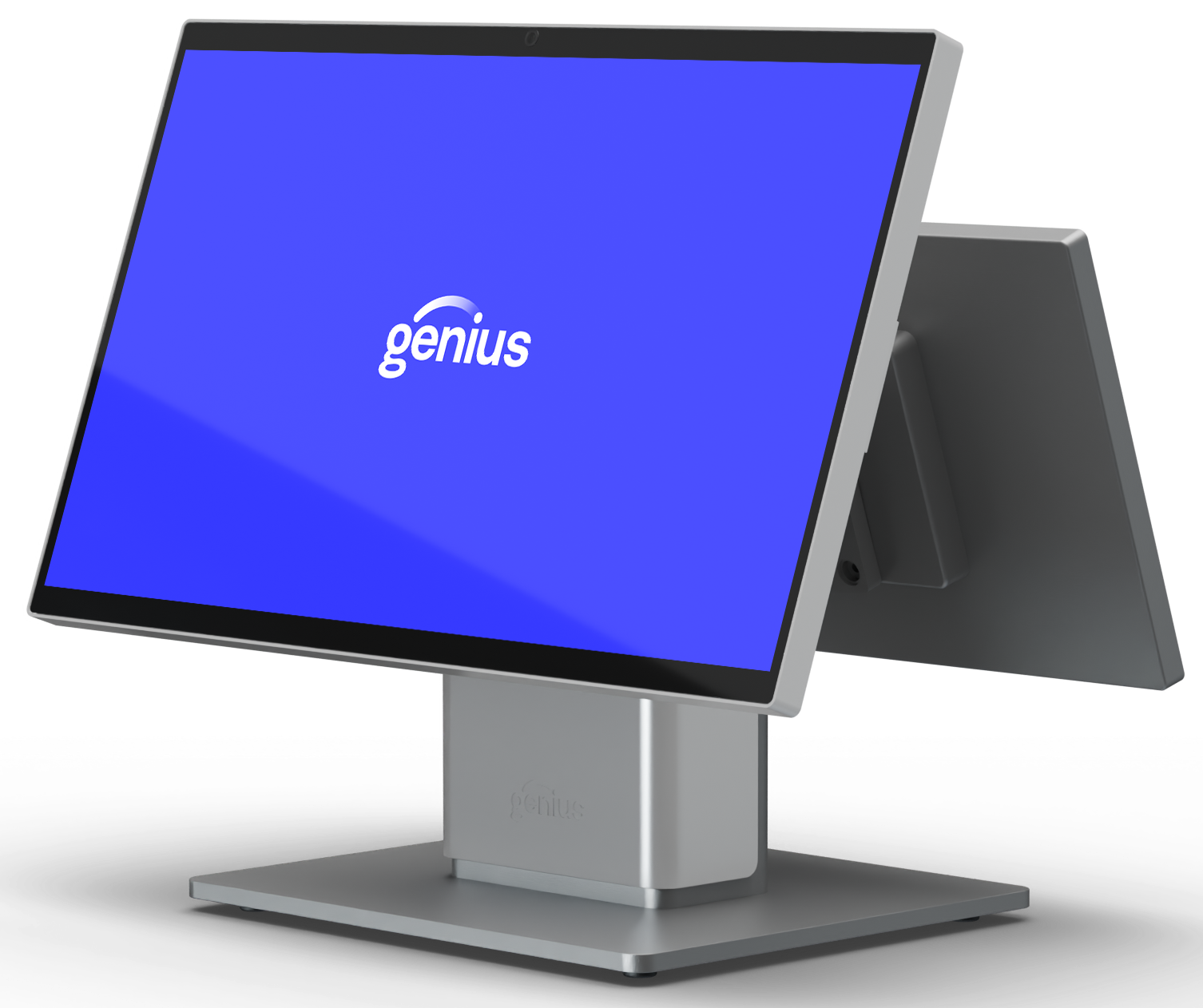

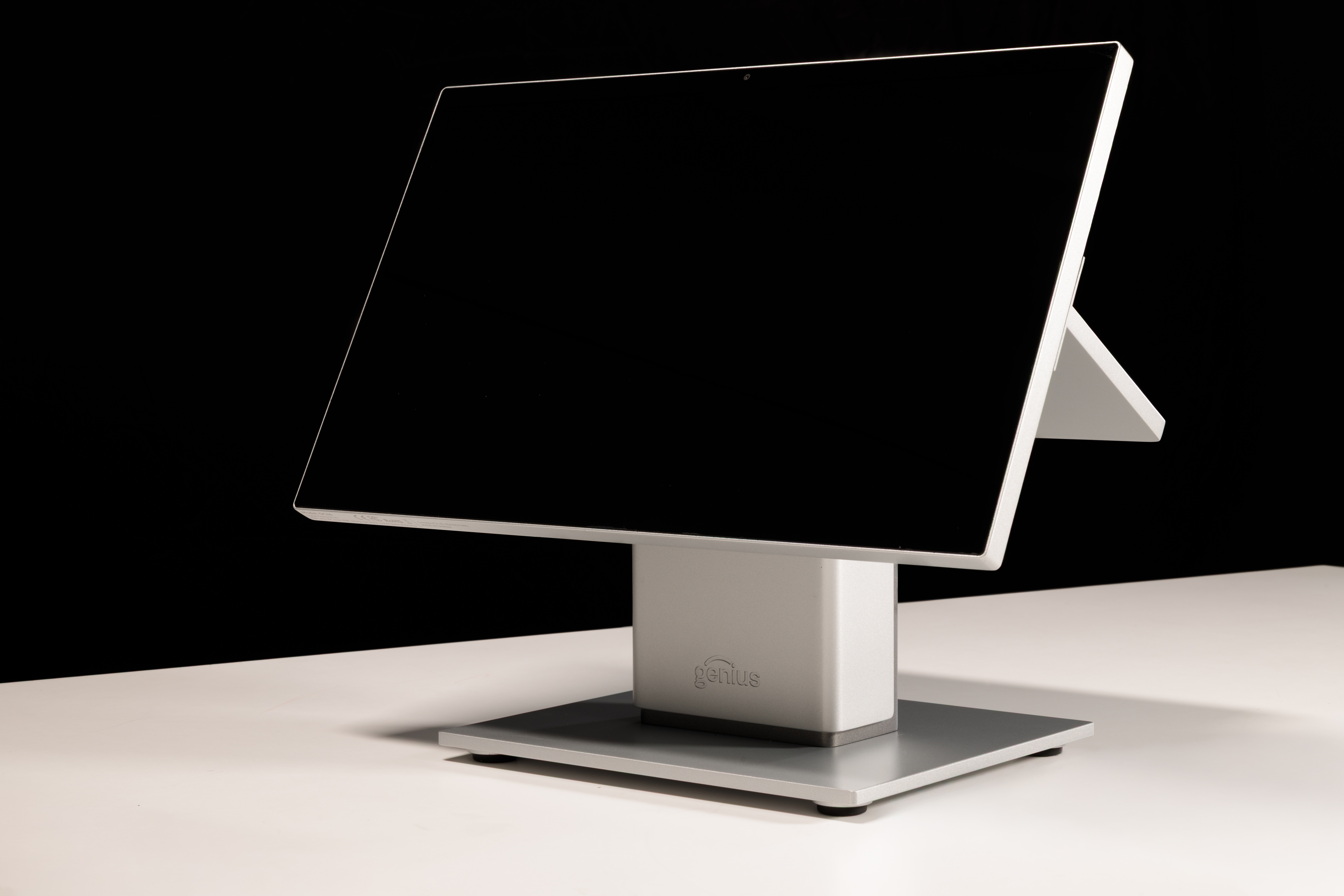

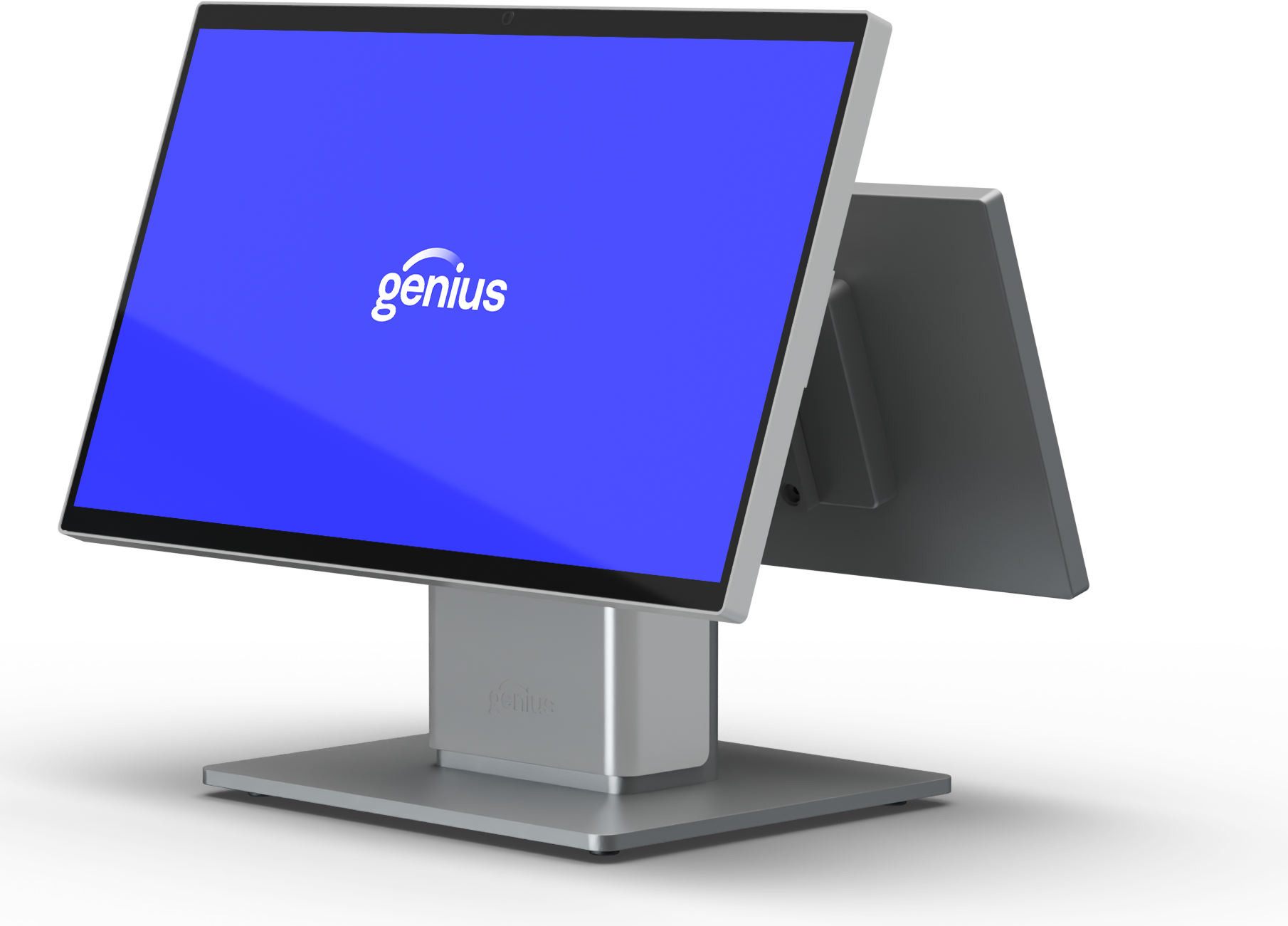

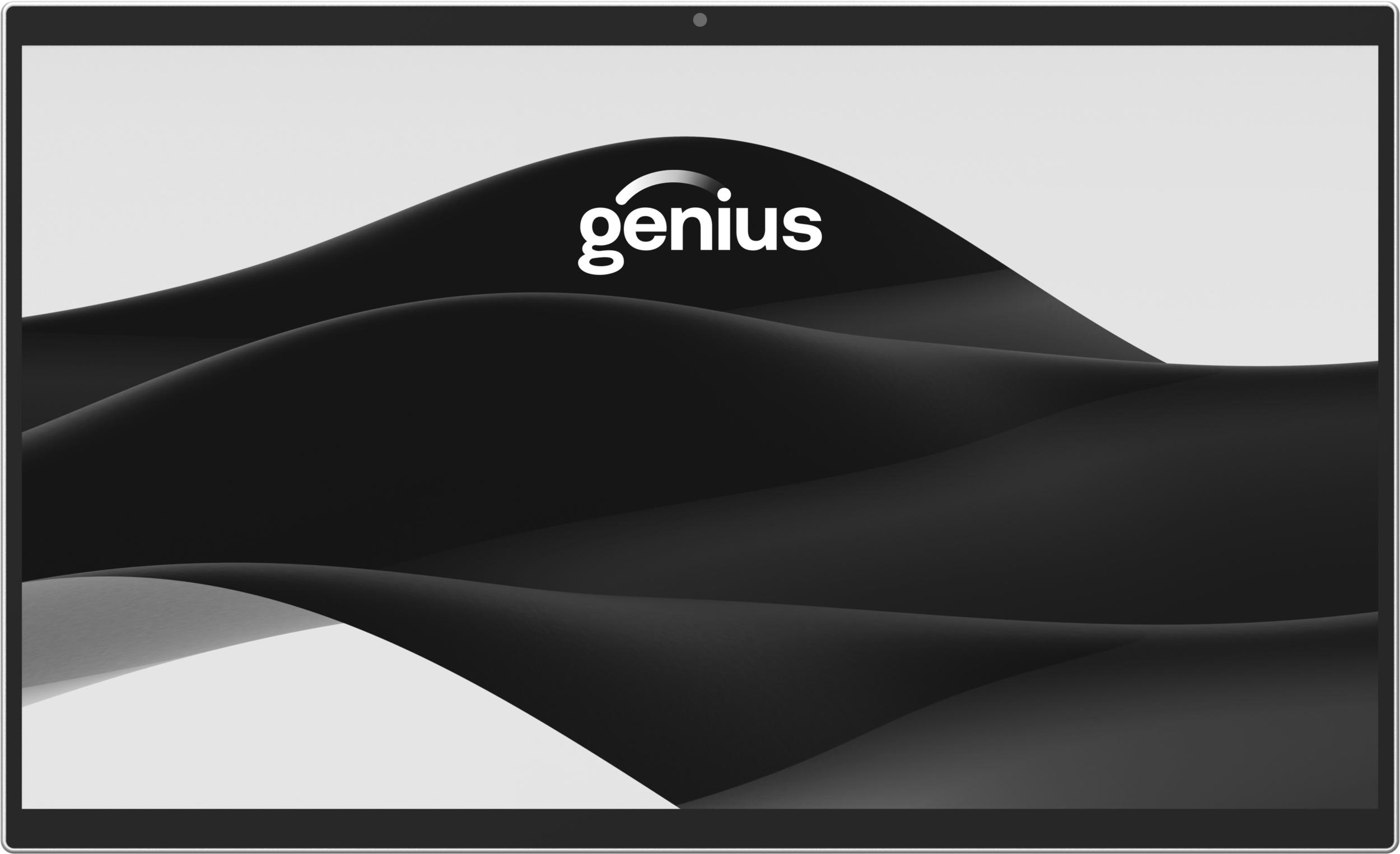

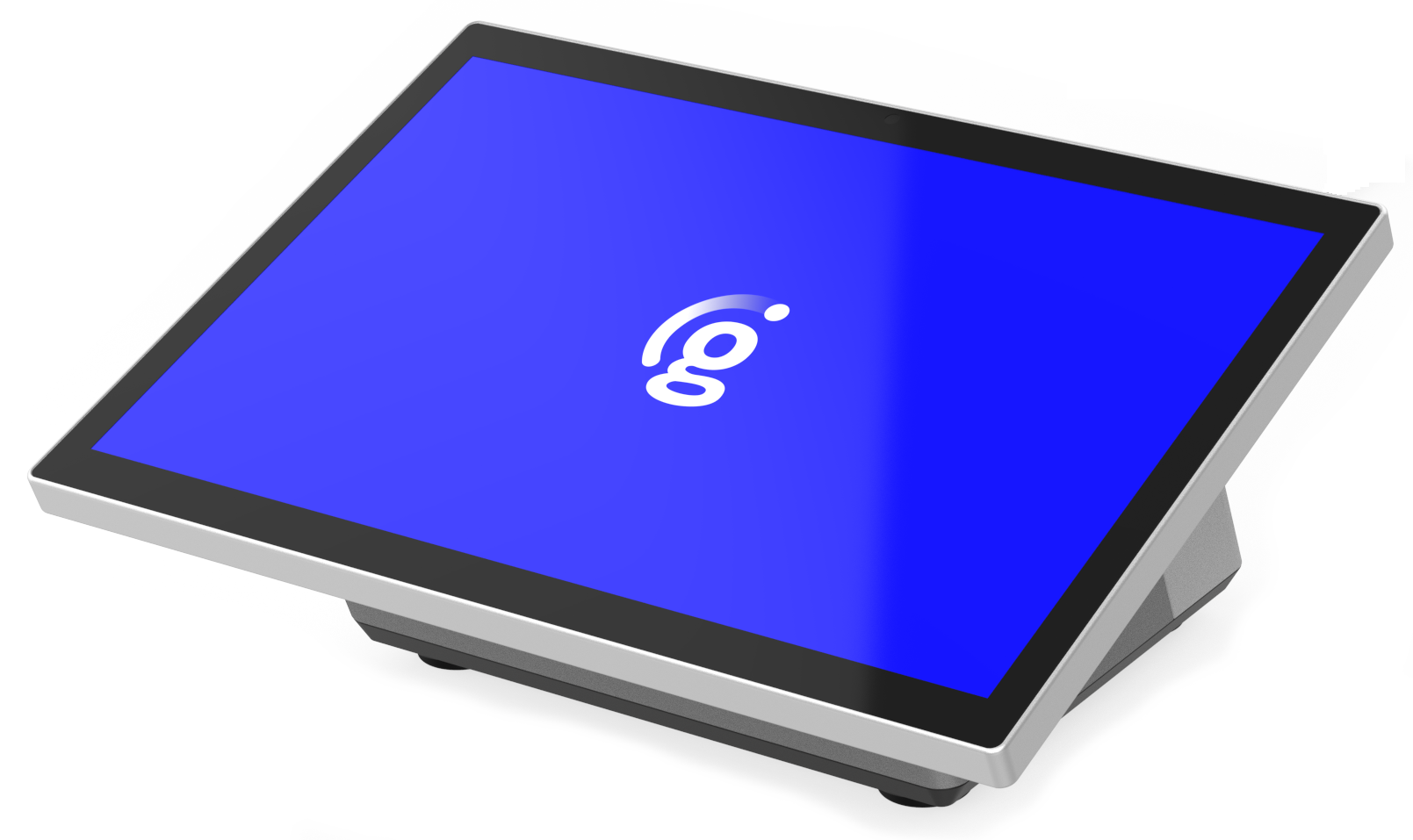

GC26 Merchant-Facing Display
Hardware Specifications
GC26 | MFD | |
|---|---|
SF Model | 2600-MFD |
Display | 15-in countertop display |
System | G99 with Intel Alder Lake N97 or optional Intel Alder Lake i3-N305, integrated CPU |
Memory | 8GB DDR4 onboard |
Storage | 256GB M.2 SSD |
Network | M.2 (E-Key), 1 x M.2 2230 for 802.11 a/b/g/n/ac with optional BT5.2 |
Display | 15.6-in LED, True-Flat PCAP Multi-touch—direct bonding |
Resolution | 1920 x 1080 (Full HD) |
Brightness | 500-nits |
Connectivity (I/O) | LAN, 1 x RJ-45 (10/100/1000 BaseT) with PoE—max: 36W USB Type-C, 1 x Type-C (power), USB3.0, 20V/5A input and 5V/3A output, On The Go support; 1 x Type-C (display), support ALT with PD (5V,12V) |
Peripheral port | Pogo PIN, 1x right side; 1x left side |

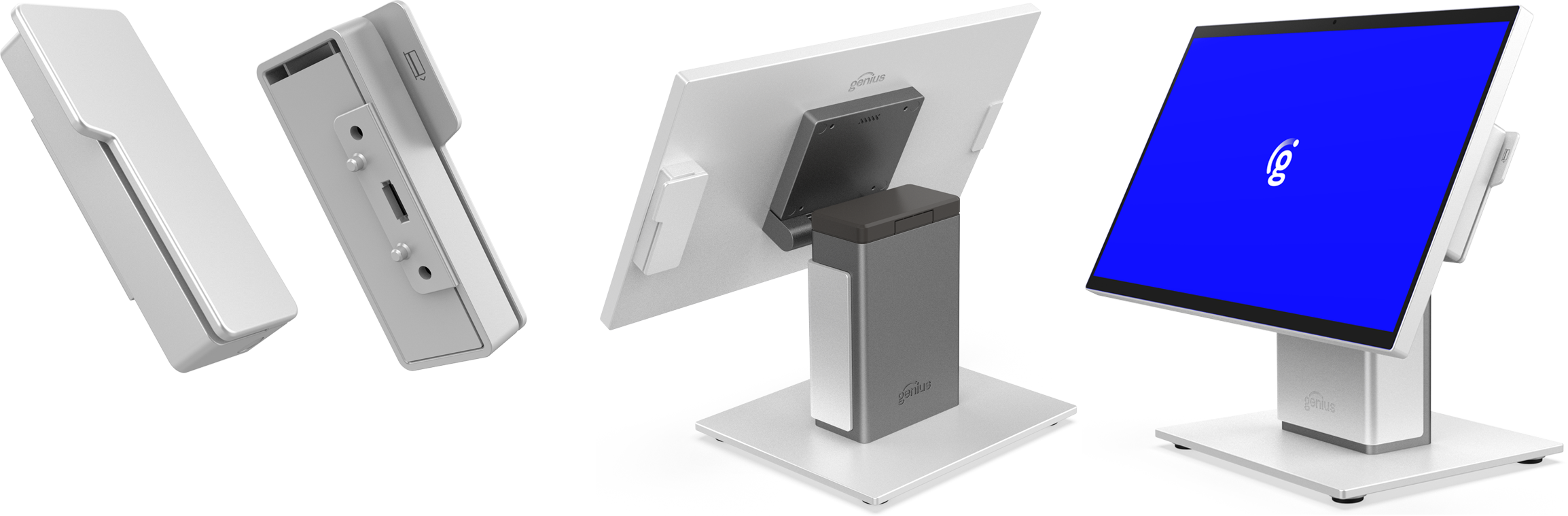

Magnetic Stripe Reader | Yes |

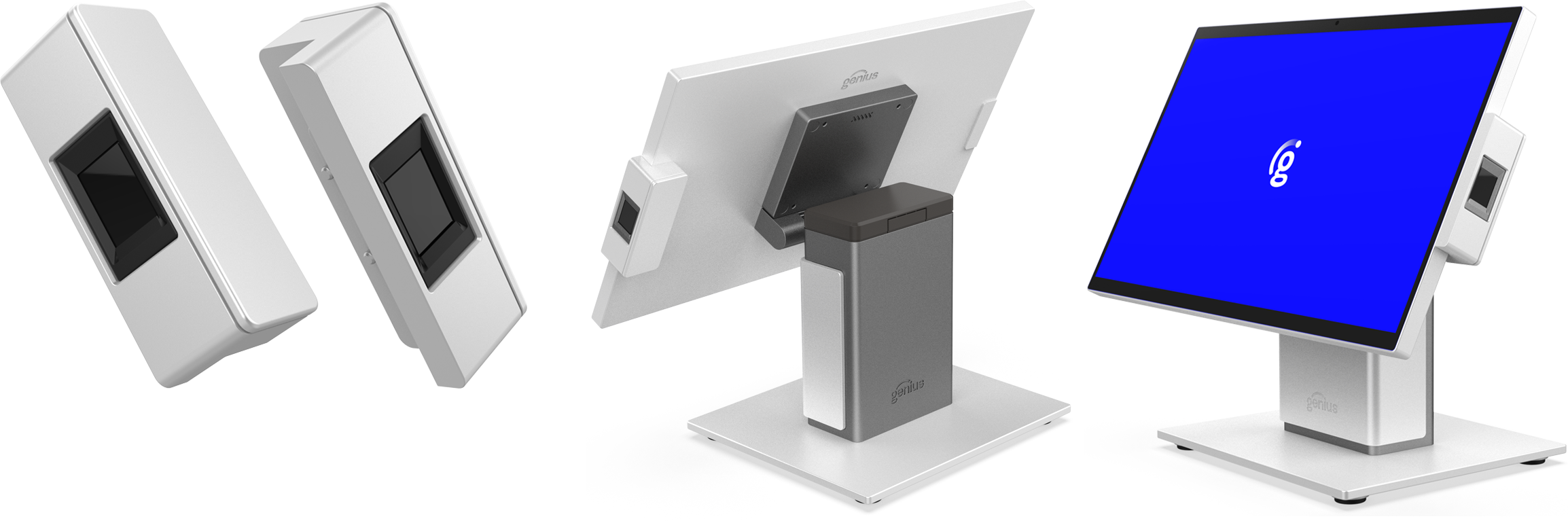

Fingerprint Biometrics | Yes |
Power button | 1 x Installed on the back cover |
Camera | 1 x 5M |
Audio | Internal speaker, 1 x 1W |

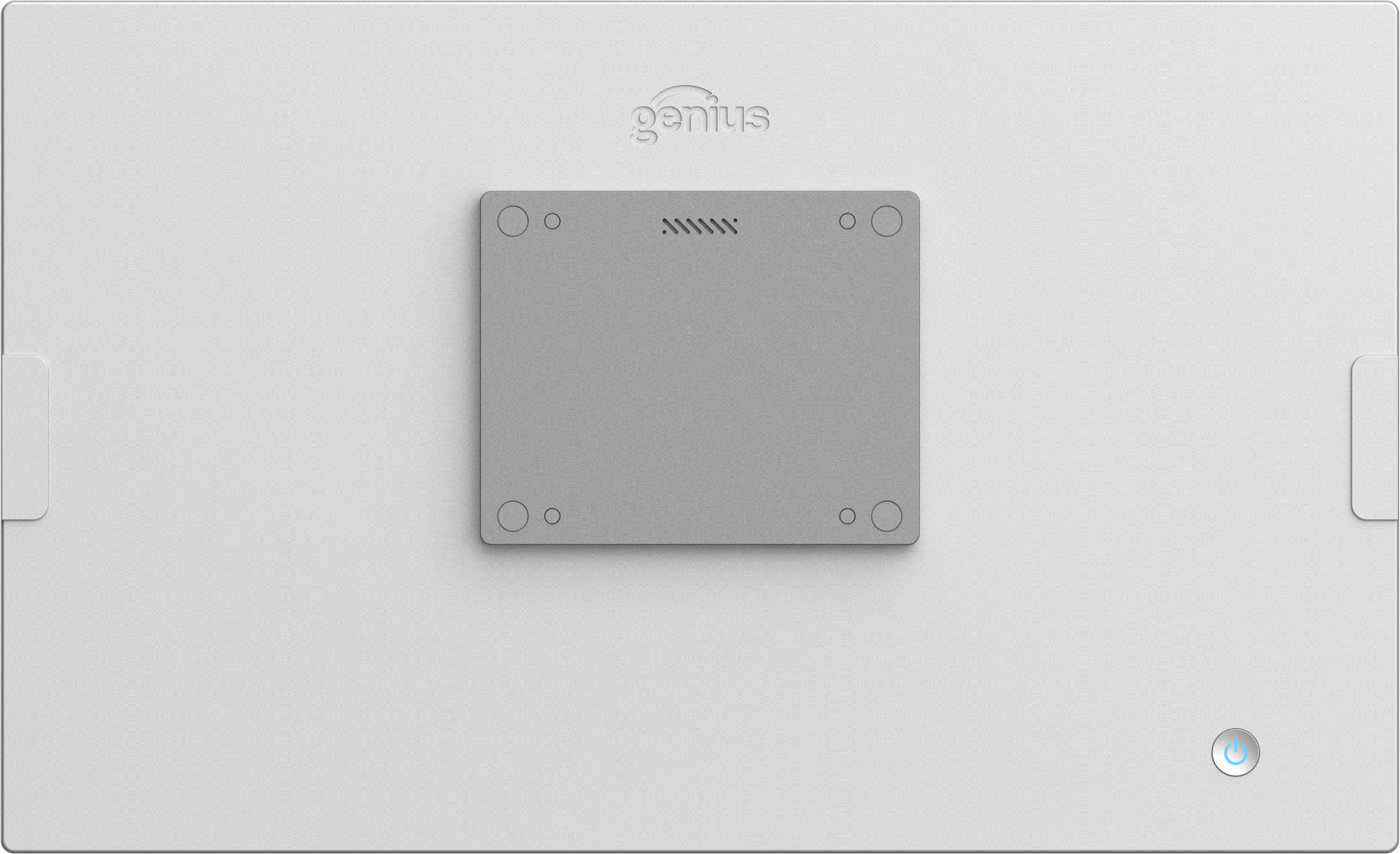

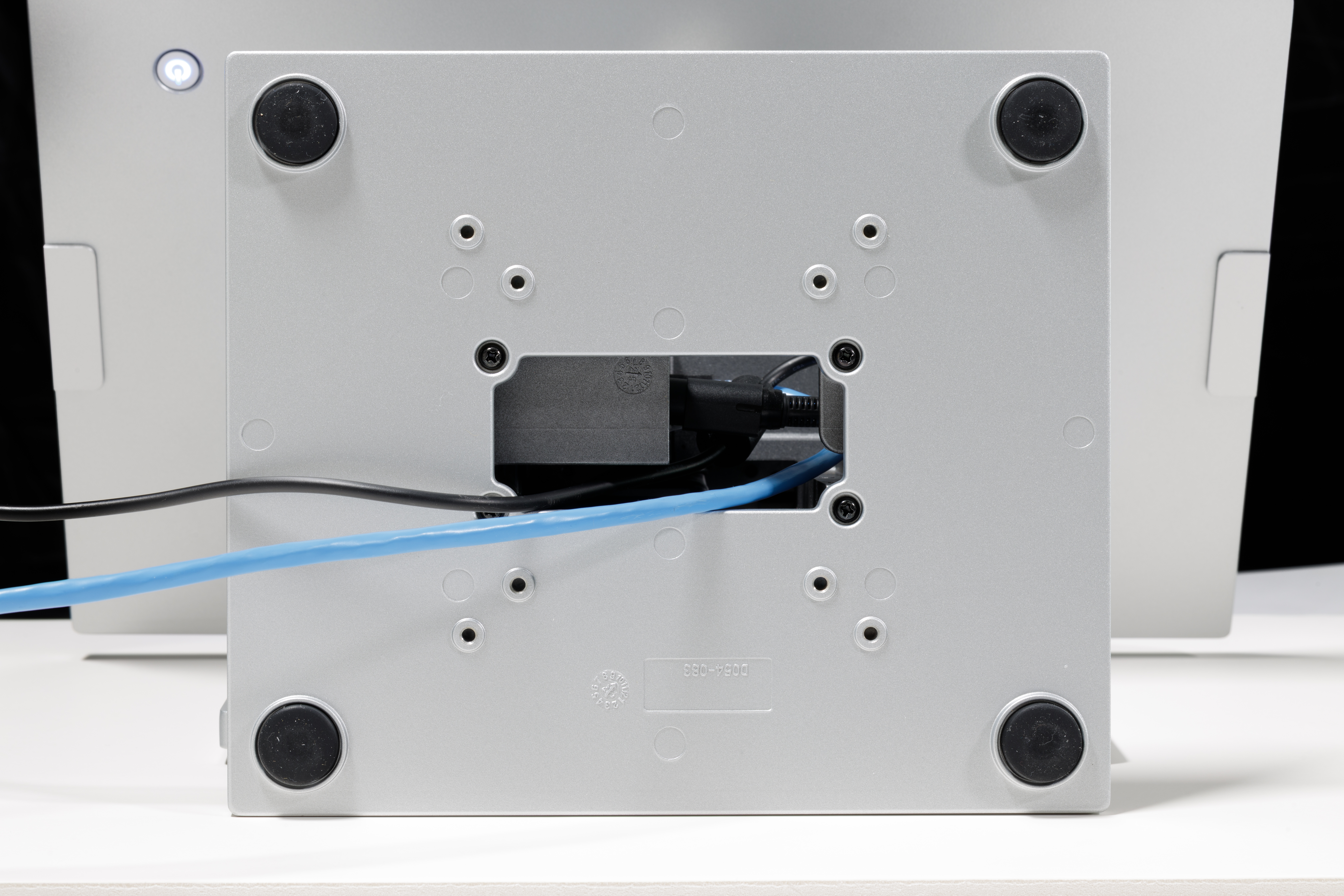

VESA Mount | 75 x 75 |
Environment |
|
Certificates | EMC and Safety: FCC and CE Mark Class A, LVD Dust and Waterproof IP Rating: IP54 |

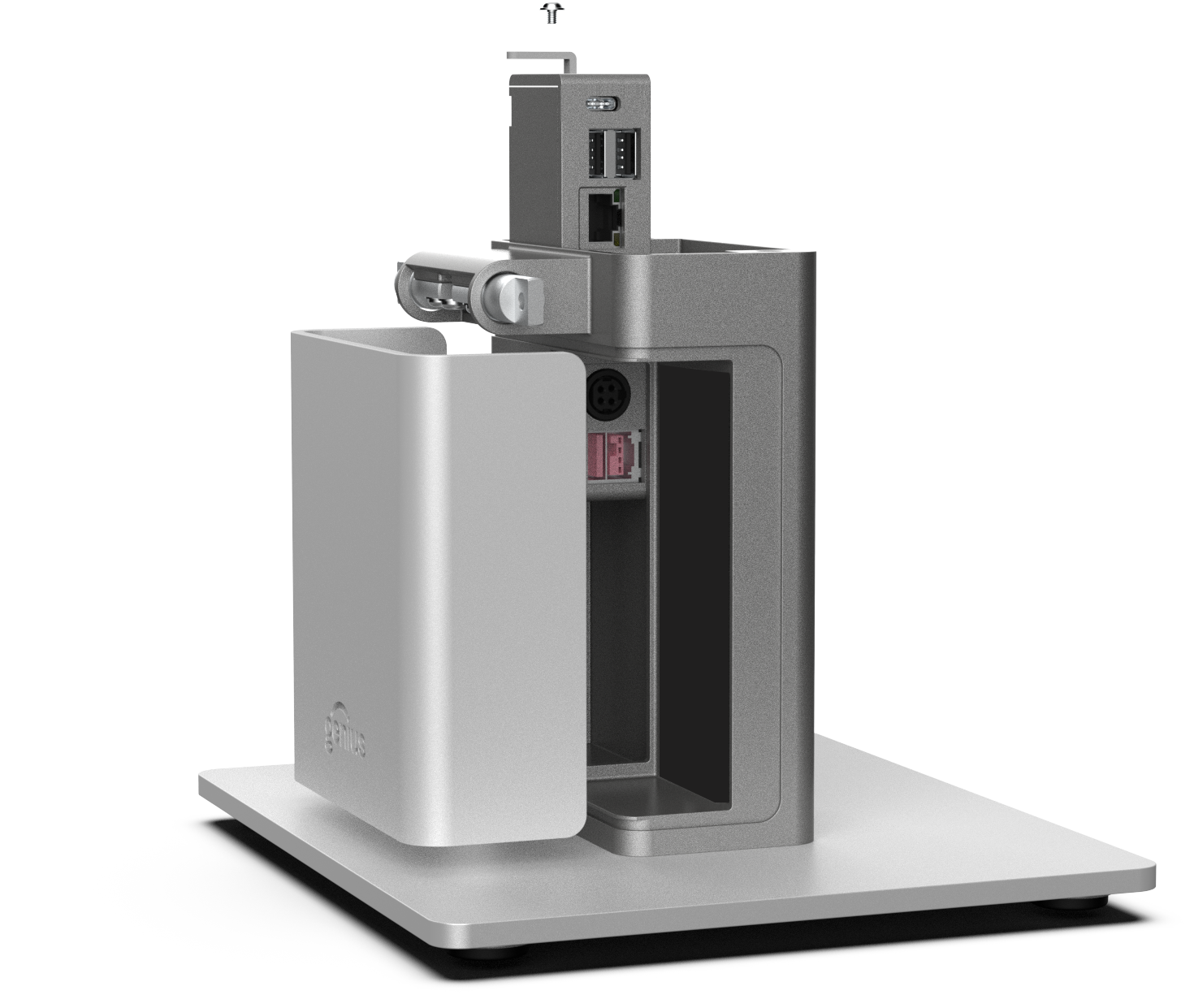

GC26 | Counter Stand
Hardware Specifications
GC26 | Counter Stand | |
|---|---|
SF Model | 2600-CS |
Connection | DC-in 19V, 4-pin with lock |
GC26 | Hub
Hardware Specifications
GC26 | Hub | |
|---|---|
SF Model | 2600-HUB1 |
Connection | USB-C, attached to the panel or stand |

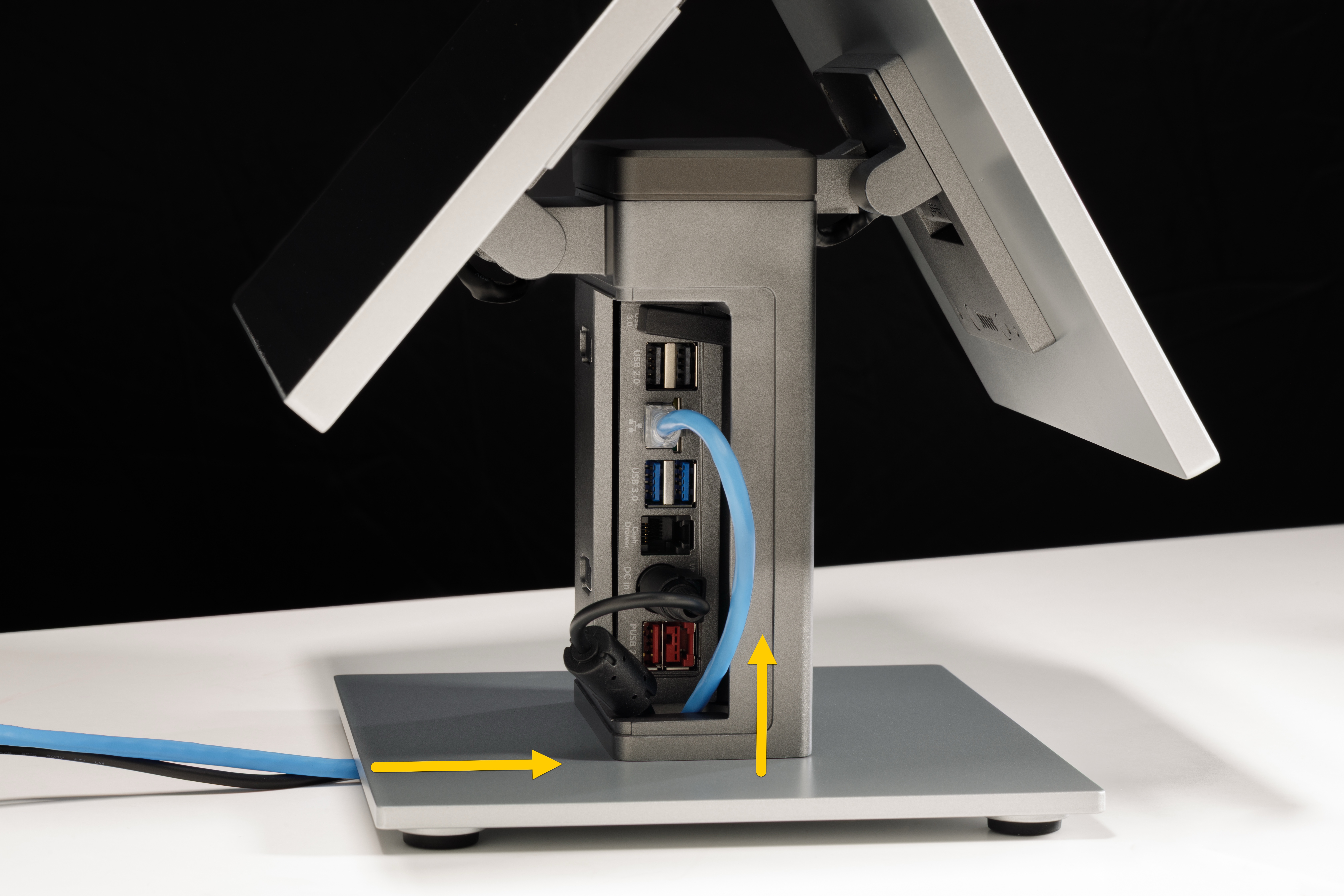

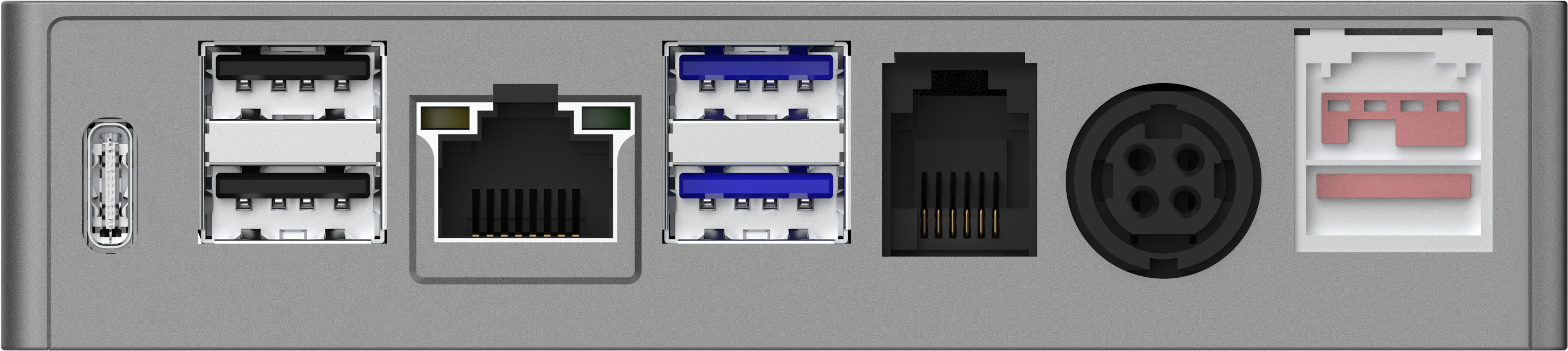

Ports | 1x USB-C for CFD, 2x USB-a 2.0, 2x USB-a 3.0, LAN RJ45, RJ11 CD, DC Jack, PUSB 24V |
GC26 | Hub Cable
Hardware Specifications
 |
GC26 | Hub Cable | |
|---|---|
SF Model | 2600-USBC |
Power | USB-C |
GC26 | Power Supply
Hardware Specifications
 |
GC26 | Power Supply | |
|---|---|
SF Model | 2600-PS |
Power Supply | DC Jack 19V/120W |
GC26 | Power Cord
Hardware Specifications
 |
Power Cord | |
|---|---|
SF Model | 2600-PCORD |
GC26 CFD with Moby Payment | ||
|---|---|---|
GC26 CFD with Moby 5500M Bundle | 2600-B-CFD-wPMT | |
10.1-in Customer Facing Display with optional embedded payment via Moby 5500M | 2600-CFD-wPMT | |

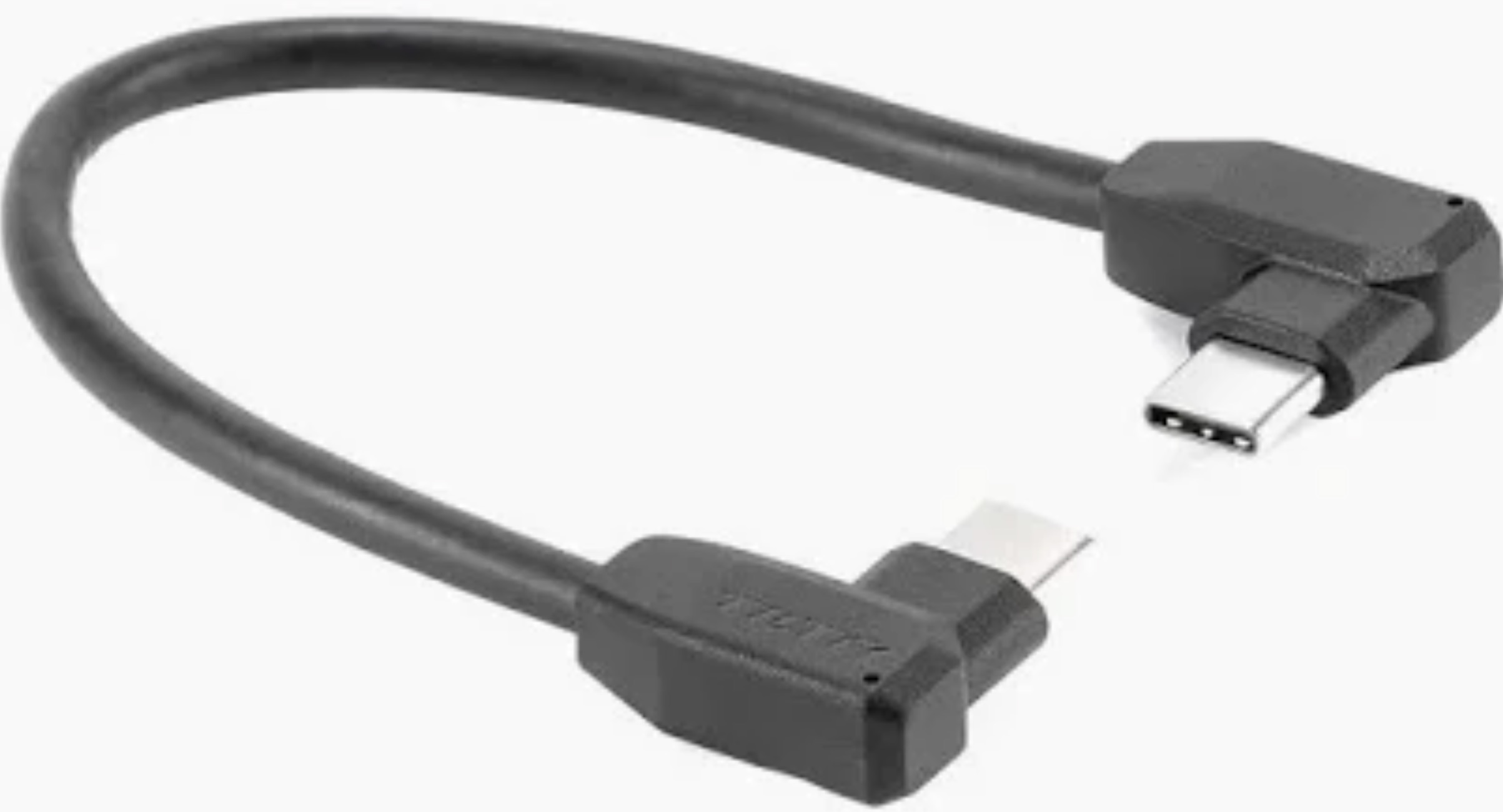

CFD Arm to Hub—type-C 250mm, 180° - 90° cable | 2600-TypeC-ARM | |

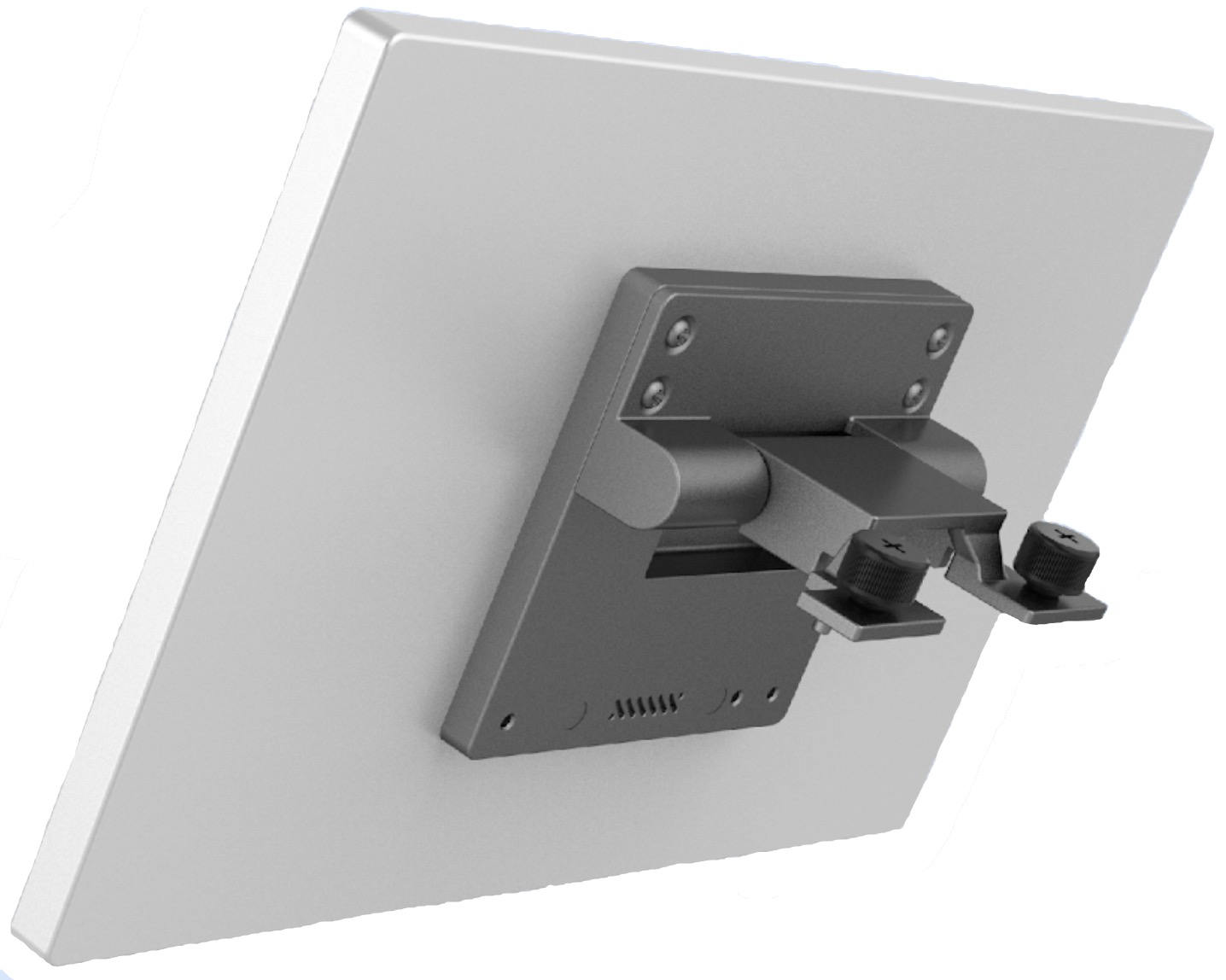

CFD arm bracket—kit | 2600-CFD-ARM | |
*Customer-Facing Display ordered separately.

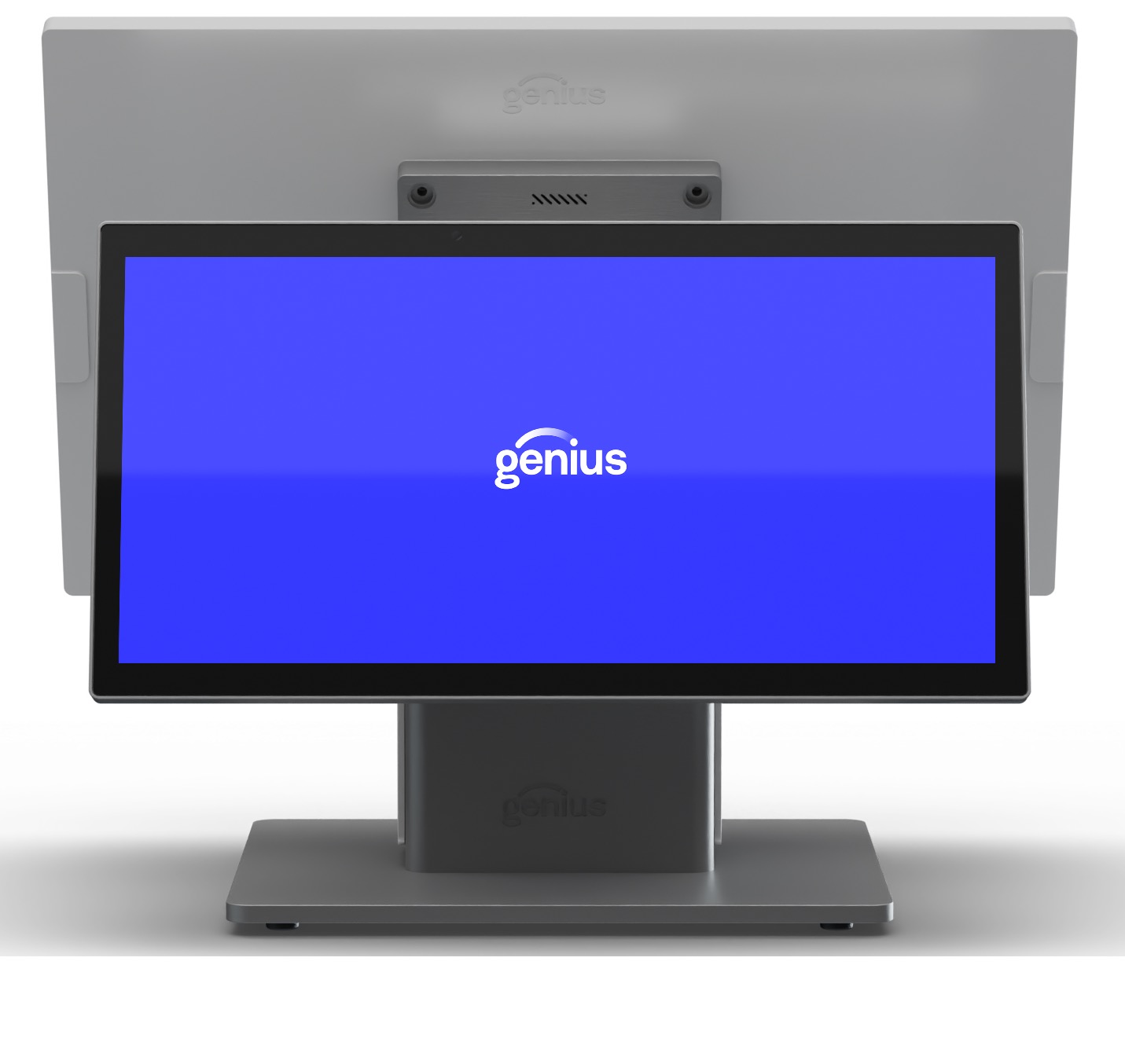

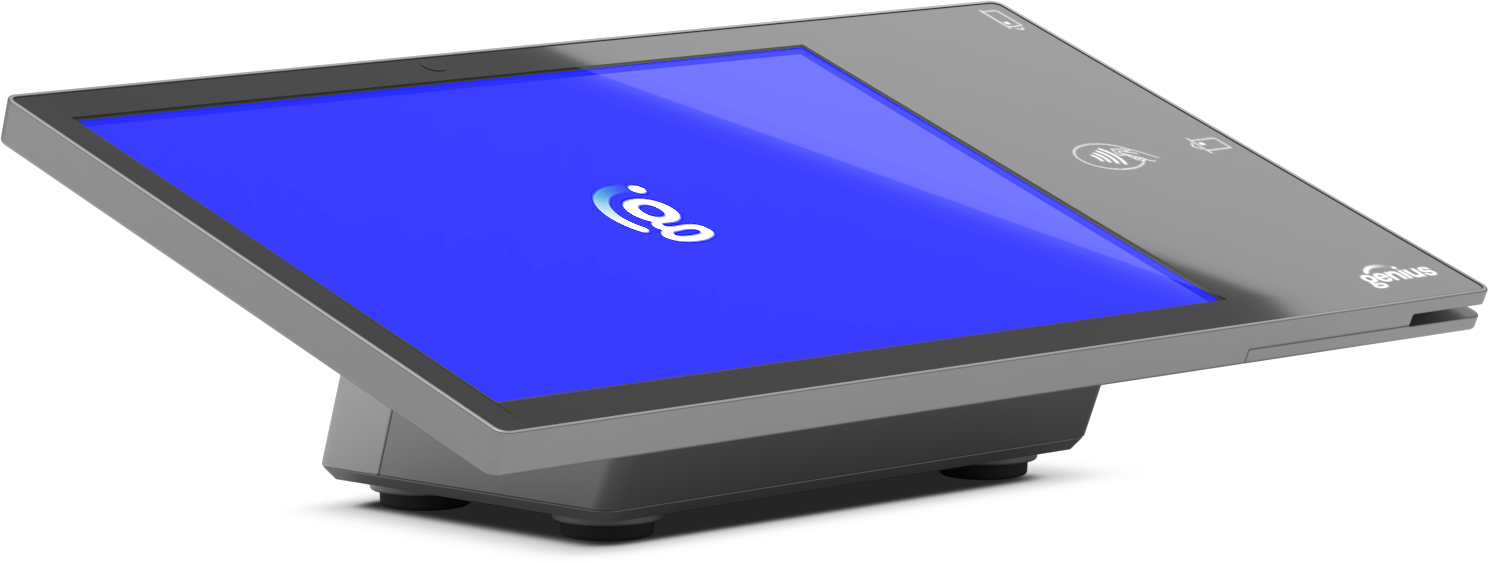

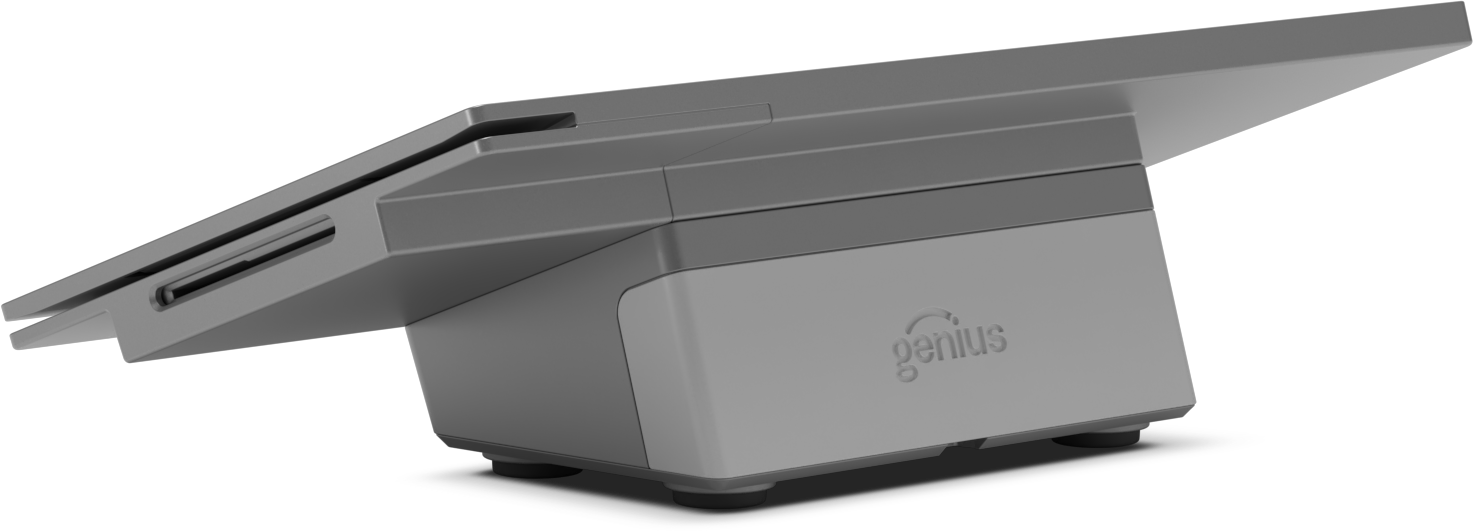

GC26 | Customer-Facing Display
Hardware Specifications
GC26 | Customer-Facing Display | |
|---|---|
SF Model | 2600-CFD; *2600-CFD-wPMT |
Display | 10.1-in LCD True-Flat PCAP Multi-touch—direct bonding |
Resolution | 1900 x 1200 |
Brightness | 500-nits |
Bezel | Glass |
Connection | 1x USB-C support ALT with PD (5V,12V) |

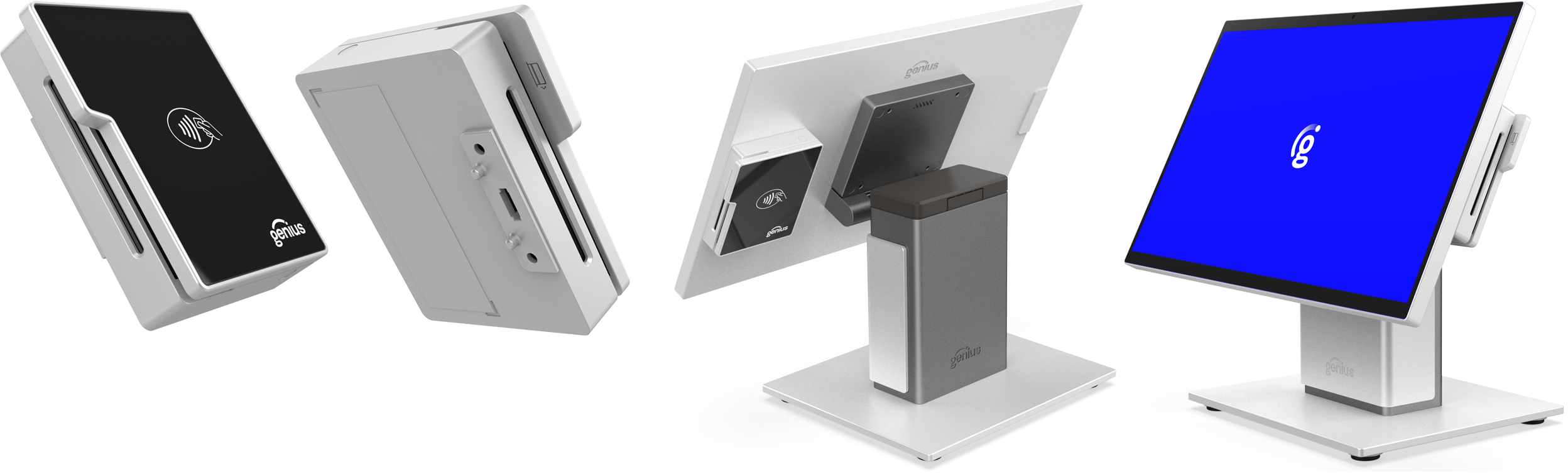

Peripheral module | *optional embedded Moby 5500M payment reader—connected through internal USB |
Camera | 5M fixed focus, built-in |
Audio | 1x 1W |
VESA Mount | 75 x 75, on back |
Environment |
|
Certificates | EMC and Safety: FCC and CE Mark Class A, LVD Dust and Waterproof IP Rating: IP54 |

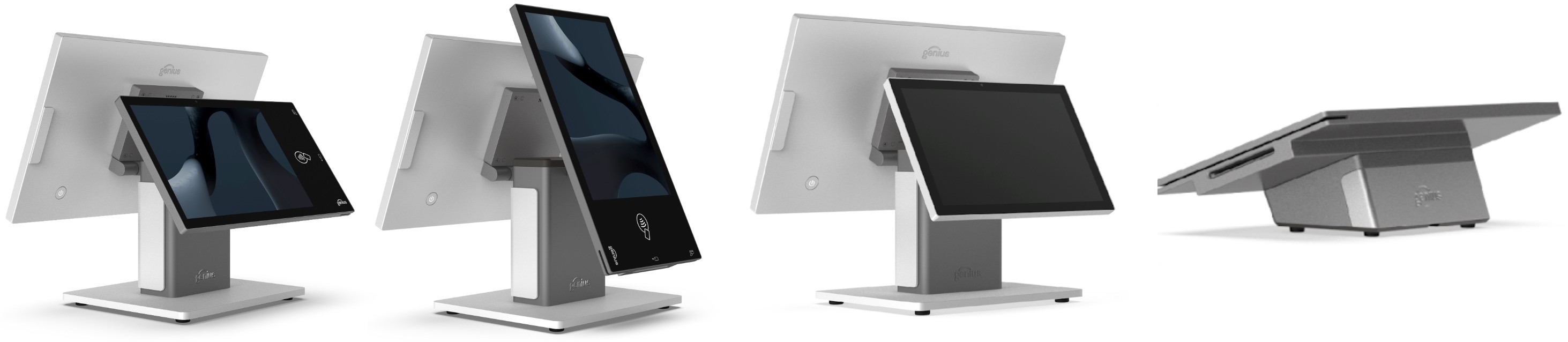

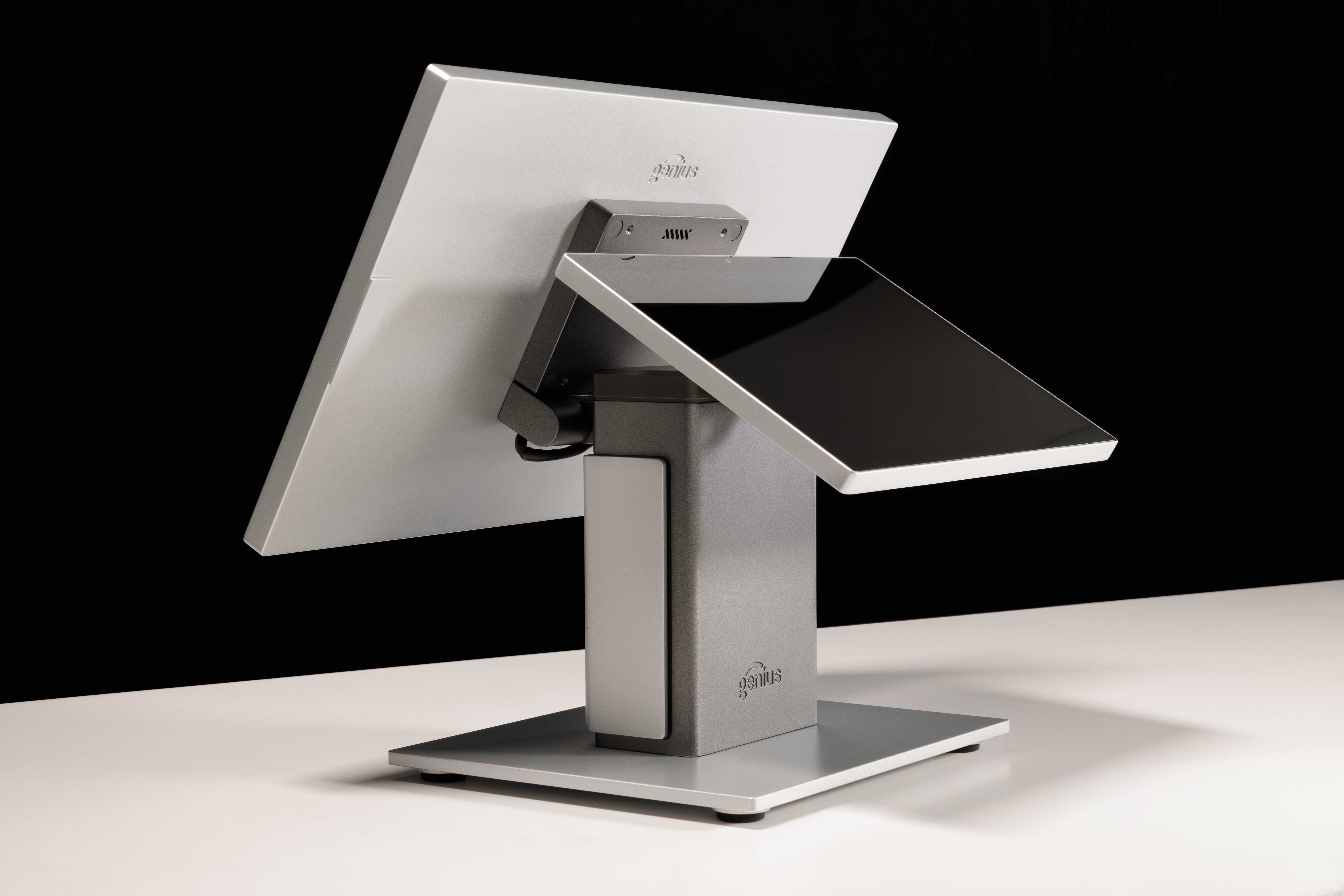

Mounting configurations | Landscape or Portrait; connects to Merchant-Facing Display (MFD) stand or sets on countertop |
GC26 CFD Bundle | ||
|---|---|---|
GC26 CFD Bundle | 2600-B-CFD | |
2600-CFD | ||
CFD Arm to Hub—type-C 250mm, 180° - 90° cable | 2600-TypeC-ARM | |
CFD arm bracket—kit | 2600-CFD-ARM | |
*Merchant-Facing Display bundle ordered separately.
GC26 | Customer-Facing Display
Hardware Specifications
GC26 | Customer-Facing Display | |
|---|---|
SF Model | 2600-CFD; *2600-CFD-wPMT |
Display | 10.1-in LCD True-Flat PCAP Multi-touch—direct bonding |
Resolution | 1900 x 1200 |
Brightness | 500-nits |
Bezel | Glass |
Connection | 1x USB-C support ALT with PD (5V,12V) |
Peripheral module | *optional embedded Moby 5500M payment reader—connected through internal USB |
Camera | 5M fixed focus, built-in |
Audio | 1x 1W |
VESA Mount | 75 x 75, on back |
Environment |
|
Certificates | EMC and Safety: FCC and CE Mark Class A, LVD Dust and Waterproof IP Rating: IP54 |
Mounting configurations | Landscape or Portrait; connects to Merchant-Facing Display (MFD) stand or sets on countertop |
