Drive-Thru Director consists of the following hardware:

  • Media Player (Controller)

  • GPIO Board

  • Vehicle Detection System

GPIO Board

The GPIO (General Purpose Input Output) board communicates electronic signals from the drive-thru vehicle sensors to the Drive-Thru Director software.

GPIO Board Wiring Standard

Review the GPIO board wiring standard below.

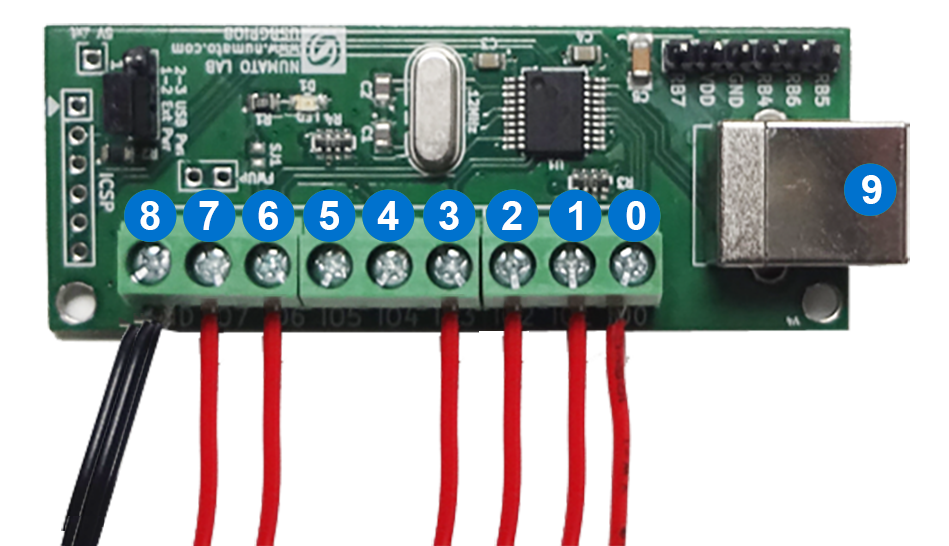

GPIO board wiring example.

0.

Menu Board 1

5.

[open]

1.

Pickup Window

6.

Greet Time (Menu Board 1)

2.

Payment Window

7.

Greet Time (Menu Board 2)

3.

Menu Board 2

8.

All Ground Wires

4.

[open]

9.

USB Connection Port
