All In One Handheld with Moby5500
Hardware Specifications
 |

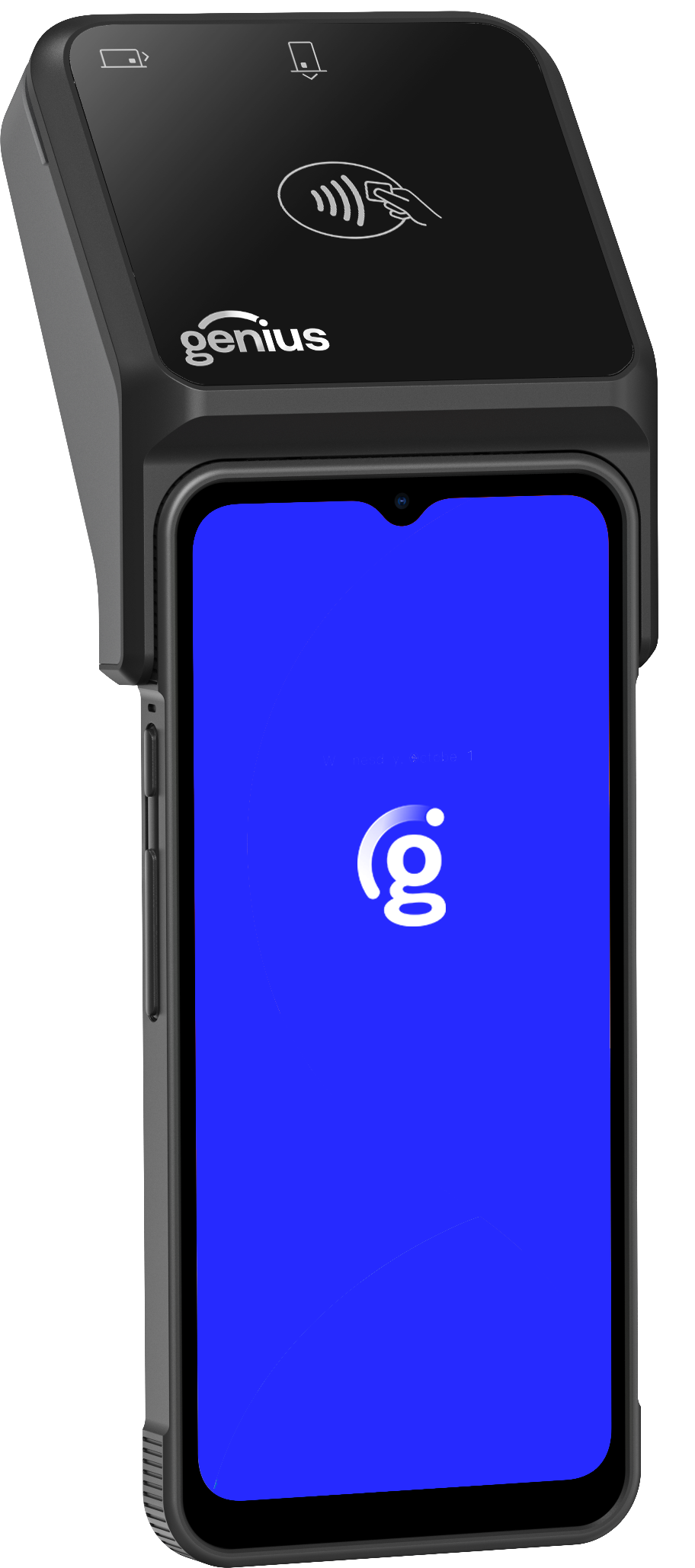

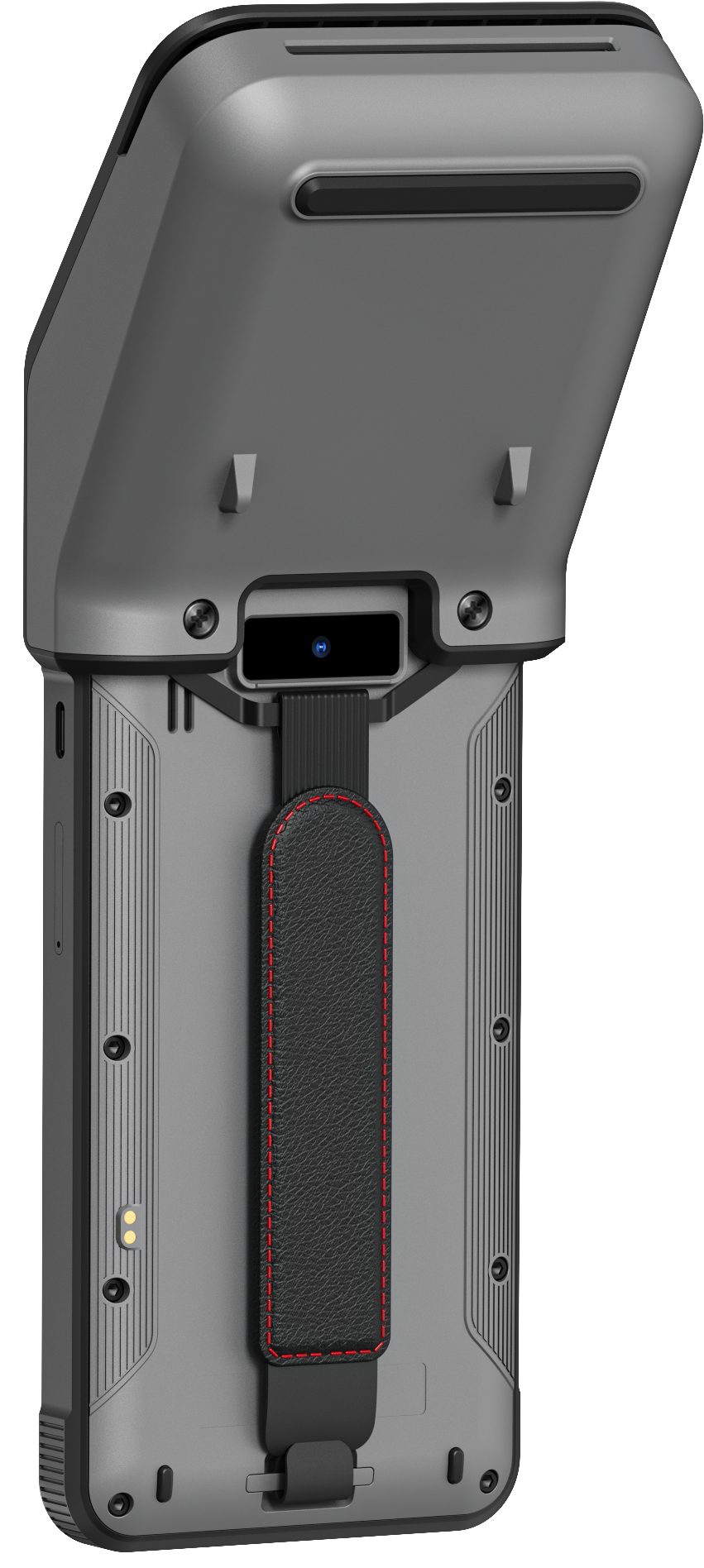

Genius All In One Handheld with Moby5500 | |
|---|---|
SF Model | 2600-AIOHand-M5500 |
Processor | Octa-Core (Quad-Cor Arm Cortex-A73, 2.0GHz; -A53 2.0GHz |
Operating System | Android 13, 64-bit |
Memory | 4GB RAM and. 32 GB ROM or 4GB RAM and 32 GB ROM (NFC) |
Connectivity | WiFi 5 (2.4GHz/5GHz); Bluetooth 5.0 |
Display | 6.5-in, 165.1-mm; 720 x 1600; Multi-point capacitive touch panel |
Peripheral ports | 1x USB C; 1x Nano SIM; 1x 2-pin charging; 1x TransFlash Card |
Battery capacity | 7.6V / 2500mAh / 19Wh |
Power adapter | Charging 10W adapter—input 100-240V; output 5V / 2A |
Dimensions | 3-in x 6.4-in x 0.4-in; 77-mm x 162-mm x 11-mm |
Weight | 0.6lbs; 245g |
Environmental |
|
Protection level |
|
Accessories |
|
Certifications | Google GMS; FCC; CE; IMDA; WEEE |

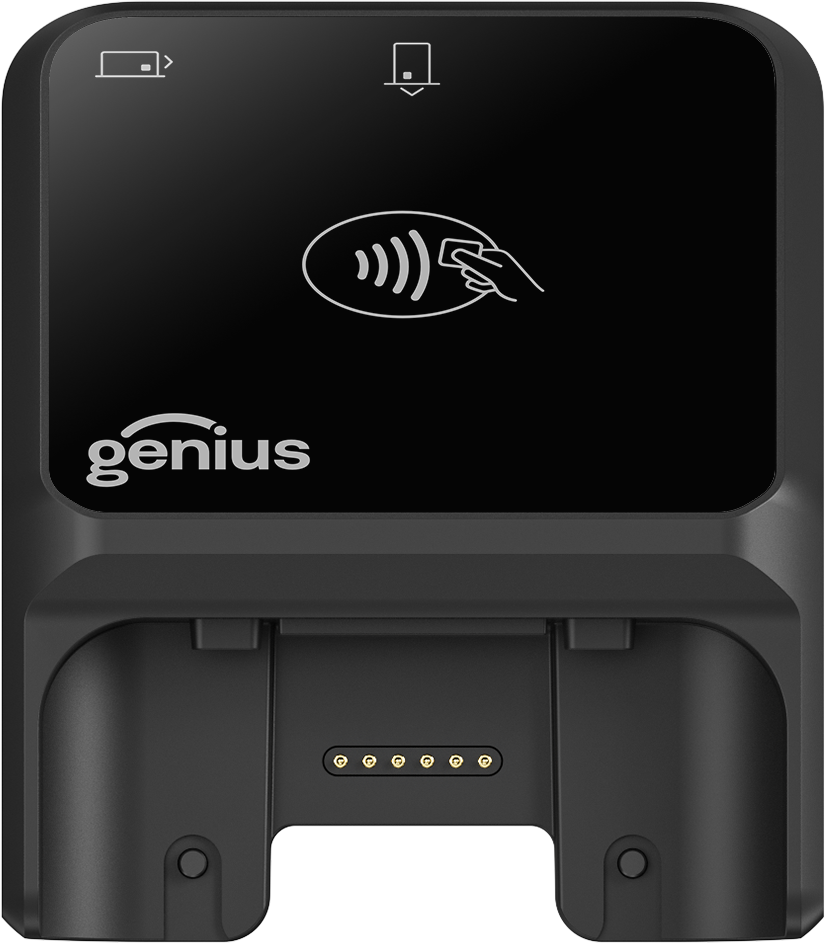

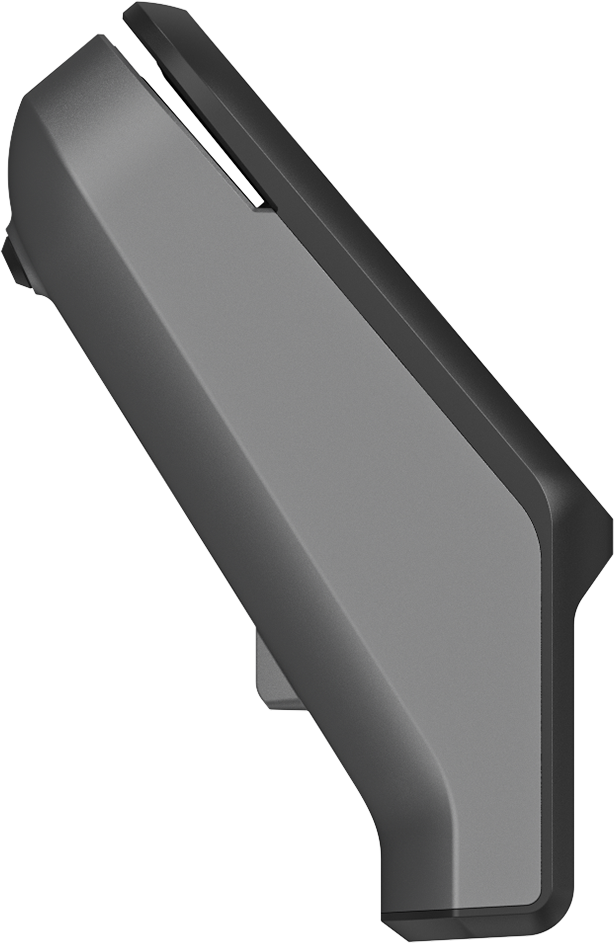

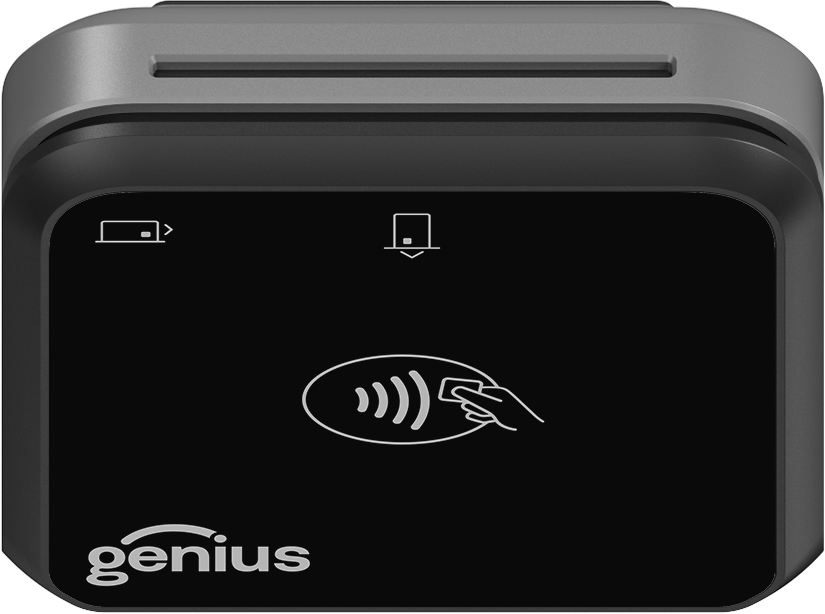

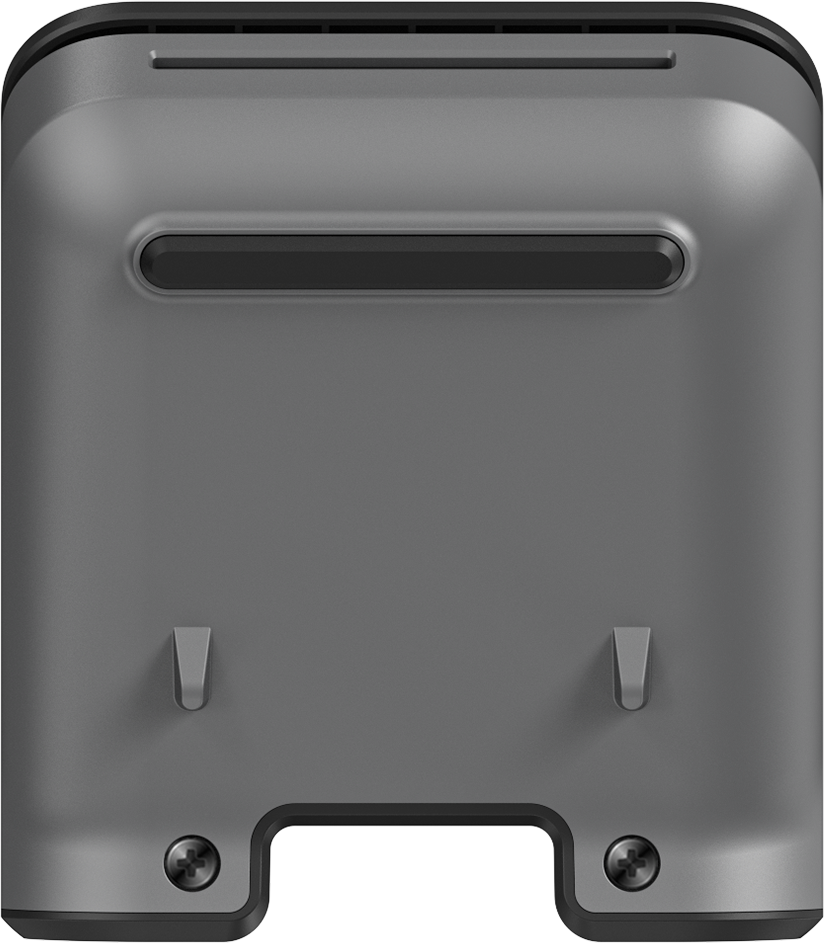

Moby 5500 | |
|---|---|
SF Model(s) | 2600-MP-P; 2600-MP-T |
Processor | Cortex-M4 150MHz |
Supported OS | Android, iOS, and Windows |
Card readers |
|
Display | LED lights for contactless, device, battery status and Bluetooth readiness |
Encryption |
|

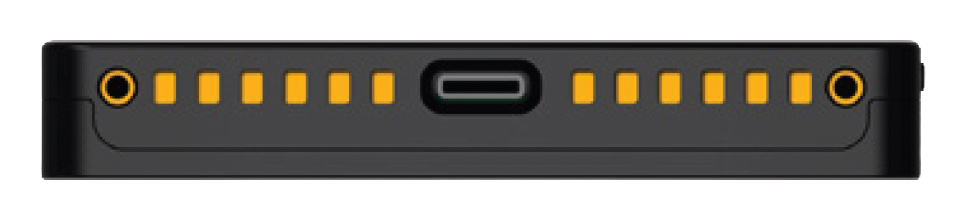

Terminal connections | USB-C connector for charging and data connection |
Power Supply | Via USB-C AB cable—PSU not provided |
Dimensions | 3 x 2.1 x .47-in; 77 x 54 x 12-mm |
Weight | < 2.47 oz; < 70 g |
Lifetime | 100k transactions on magstripe reader and smart card reader |
Certifications and security | FCC, CE, WEEE, EMV L1 and L2 Contact, EMV L1 Contactless, MasterCard Contactless 4.1.4, Visa payWave 2.2, Amex Express Pay 3.1, JCB J/Speedy 1.4, Discover D-PAS 1.0, CUP qUICS; SCR Class; PCI PTS 6.x |
 |

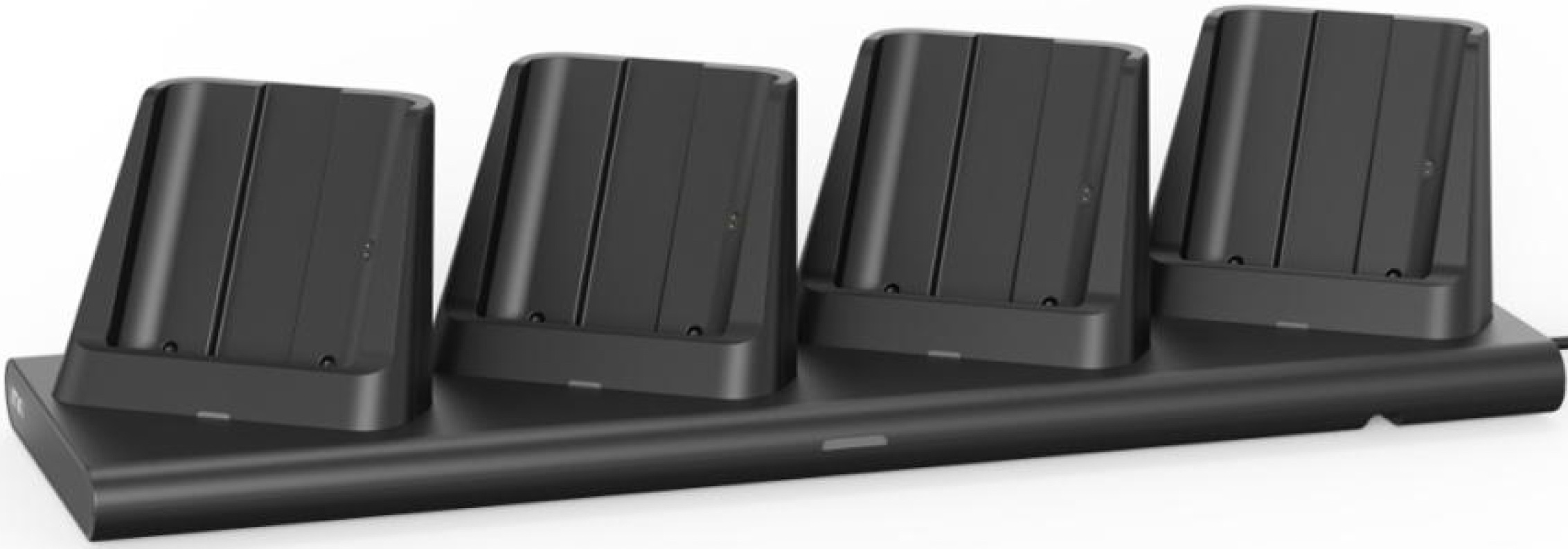

Handheld 2.5 Multi-Bay Charger | |
|---|---|
SF Model | 2600-MBC-iMin |
Charging ports | 4 bays |
Indicator | LED |
Charging performance | Full-charging period of 4.5 hours |
Peripheral ports | 2 Pogo pins x 4, 5V 2A output; DC 24V 2.5A input |
Adapter |
|
Dimensions | 5.5-in x 18-in x 4.4-in; 140-mm x 456-mm x 112-mm |
Weight | 3.7-lbs; 1.7 kg |
Environmental |
|
